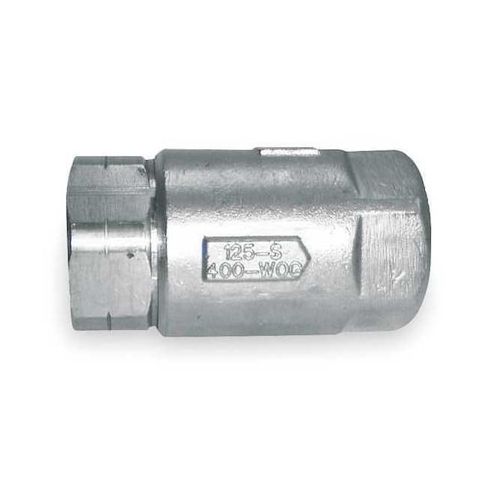

1/4" FNPT Stainless Steel Ball Cone Spring Check Valve MPN:6210101
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2770652
1/4" FNPT Stainless Steel Ball Cone Spring Check Valve
The Apollo Valves 1/4in FNPT Stainless Steel Ball Cone Spring Check Valve is a reliable and efficient solution for various applications. Suitable for use in water, steam, and other fluid systems, this check valve features a stainless steel body and 316 stainless steel spring for durability and resistance to corrosion. Its EPDM seal and RPTFE seat ensure a tight shut-off, while its compact design allows for easy installation in horizontal or vertical orientations. Ideal for use in water treatment, chemical processing, and HVAC systems, this valve provides a safe and reliable means of preventing backflow and ensuring system integrity.
Top product features:
- Stainless Steel construction for corrosion resistance
- EPDM seal material for reliable sealing and durability
- 316 Stainless Steel spring material for high temperature and pressure resistance
Top product applications:
- Water treatment systems
- Steam power systems
- Industrial process control systems
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Ball Cone, Body Material - Valves Stainless Steel, Pipe or Tube Size 1/4 in, Connection Type FNPT x FNPT, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 180 Degrees F, Min. Temp. - Valves 33 Degrees F, Max. Water Pressure - Valves 400 psi, Max. Steam Pressure - Valves 150 psi WSP, Seat Material RPTFE, Spring Material 316 Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.90
- Package Height: 3.60
- Package Weight: 0.40
