T and P Relief Valve, MNPT x FNPT MPN:18C5314125
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2079217

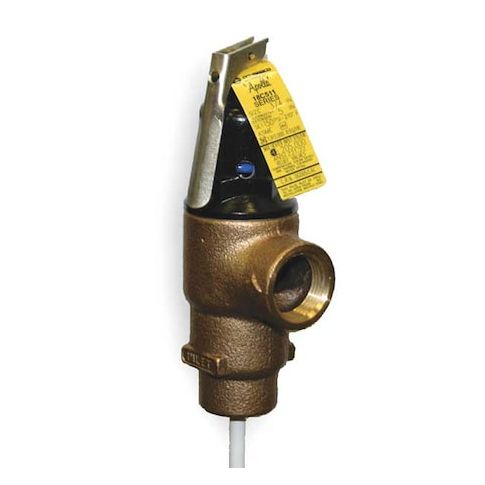

T and P Relief Valve, MNPT x FNPT
The APOLLO VALVES T and P Relief Valve is a reliable solution for temperature and pressure relief in various applications. This valve is designed for use in systems where high pressure and temperature must be managed, such as in commercial and industrial settings. Its factory-set pressure of 125 psi and maximum temperature of 210 Degrees F make it suitable for a wide range of uses. The valve's auto-reseating feature ensures safe and efficient operation, while its bronze body and stainless steel spring provide durability and resistance to corrosion. Ideal for use in HVAC systems, water heaters, and other high-pressure applications.
Top product features:
- Temperature and pressure relief valve with factory set pressure of 125 psi
- Auto-reseating feature allows for automatic closure of the valve after pressure relief
- Thermostat length of 4 inches allows for precise temperature regulation
Top product applications:
- Boiler systems for commercial and industrial applications
- Water heaters and storage tanks in residential and commercial buildings
- High-pressure steam systems in power generation and processing plants
Temperature and Pressure Relief Valve, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1 1/4 in, Outlet Size 1 in, Thermostat Length 4 in, Body Height 5 5/8 in, 750,000 BtuH BtuH, Factory Set Pressure 125 psi, Max. Temp. 210 Degrees F, Shank Length Standard, Auto Re-Seating Yes, Body Material Bronze, Spring Material Stainless Steel, Body Width 6 1/2 in, Standards ANSI Z21.22, ASME Code HV, CSA
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.00
- Package Height: 10.80
- Package Weight: 2.80
Product info last updated on February 1, 2026 12:02am UTC
Category: Pipes, Valves and Fittings
