2-1/2" FNPT Brass Ball Valve Inline MPN:94A10901

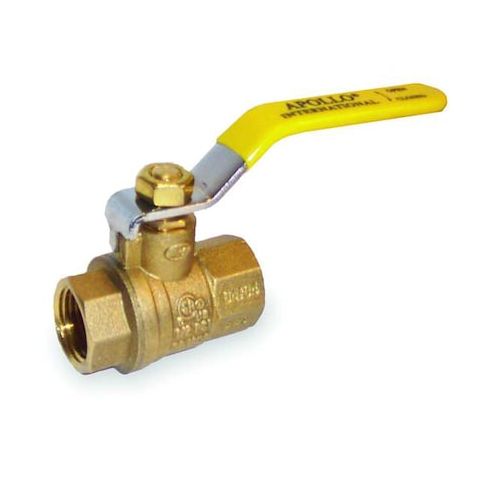

• The APOLLO VALVES 94A10901 is a manual 2-way ball valve with a two-piece inline brass body and a full port design. It has 2-1/2 in FNPT female connections on both ends and is used for general flow control applications, including combustible gases, HVAC, and fire protection trim and drain service. The valve features a chrome-plated brass ball, brass stem, PTFE seats, EPDM seals, and a lever handle with a yellow PVC and steel grip.

  Key Features of the APOLLO VALVES 94A10901 Ball Valve:


  • Full Port Ball: Full port opening supports unrestricted flow through the valve.
  • Two-Piece Brass Body: Inline forged brass construction with a two-piece valve structure.
  • Blowout-Resistant Stem: Brass stem is designed to resist blowout during operation.
  • Connection Size and Type: 2-1/2 in FNPT female x female ends for NPT threaded pipe connections.
  • Pressure Rating: Rated for 400 PSI CWP.
  • Temperature Range: Operates from 0 degrees F to 400 degrees F.
  • Seat and Seal Materials: PTFE seats and EPDM seals.
  • Lever Handle: Manual lever handle with non-locking design.
  • Handle Dimensions: Handle length is 8.7 in and handle height is 4.65 in.
  • Standards: MSS SP-110
  • UL 125, UL 1477, UL 842
  • CSA
  • FM.
  • Factory Tested: 100% factory tested.
