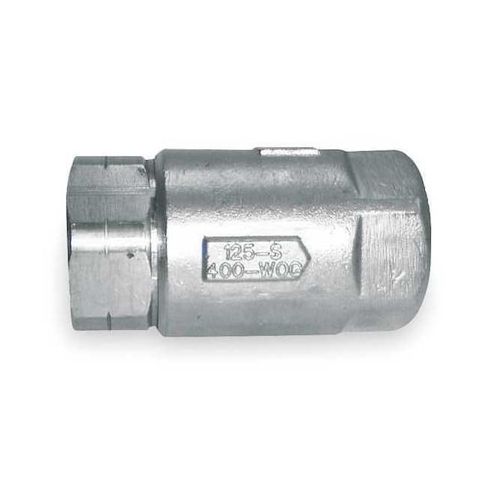

1" FNPT Stainless Steel Ball Cone Spring Check Valve MPN:6210501
Free Shipping
In Stock
The Apollo 62-100 Series stainless steel ball cone spring check valve is designed for applications in corrosive environments, including chemical processing, pulp and paper, and other process industries. Its rugged stainless steel body and patented RPTFE ball cone check provide reliable protection against reverse flow. With a unique design and spring-loaded seating action, this check valve ensures fast and reliable operation. Its center-guided design eliminates the need for radial alignment, making it a reliable choice for demanding applications. Suitable for use in a variety of industries, this check valve is a valuable addition to any process system.
Top product features:
- Unique Design (US Patent # 4,172,465)
- Spring-Loaded For Fast Seating Action
- Center Guided Radial Alignment Never Needed
Top product applications:
- Chemical processing
- Pulp and paper
- Other process industries
The APOLLO VALVES 6210501 is a 1 in inline ball cone spring check valve from the 62 Series for general purpose reverse-flow control. It has a stainless steel body with an RPTFE ball cone and seat, EPDM seal, and a 316 stainless steel spring. The valve uses a spring-loaded, center-guided design and has female NPT connections on both ends.
Key features:
- Valve type: Ball cone spring check valve with inline body design for one-way flow control.
- Body material: Stainless steel construction.
- Check mechanism: Ball cone design with RPTFE ball cone and seat material.
- Spring-loaded operation: Supports fast seating action.
- Center guided design: Radial alignment is not needed.
- Connections: 1 in FNPT x FNPT female threaded ends.
- Cracking pressure: 0.5 psi.
- Flow coefficient: Cv 6.
- Flow rate: 6 gpm.
- Pressure ratings: 400 psig CWP max pressure and 150 psi SWP max steam pressure.
- Temperature range: 33 to 350 degrees F.
- Mounting: Can be installed horizontally or vertically.
- Standards: CRN.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.00
- Package Height: 4.80
- Package Weight: 1.50
