3/4" FNPT Bronze Ball Valve Inline MPN:7010401
Free Shipping
In Stock
The Apollo 70 Series 3/4in FNPT Bronze Ball Valve is a trusted solution for various applications, including water treatment, irrigation, and industrial processes. Its heavy-duty construction and premium materials ensure reliable performance, even in demanding environments. The adjustable stem packing gland and blowout proof stem design provide added safety and maintenance convenience. With 100% factory testing and manufacturing in the USA, this valve meets the highest standards of quality. Its compact size and easy installation make it ideal for a wide range of applications, from residential to commercial use.
Top product features:
- Adjustable Stem Packing Gland
- Blowout Proof Stem Design
- RPTFE Seats and MPTFE Stem Packing Rings
Top product applications:
- Water Treatment Plants
- Petrochemical Processing Plants
- Industrial Process Control Systems

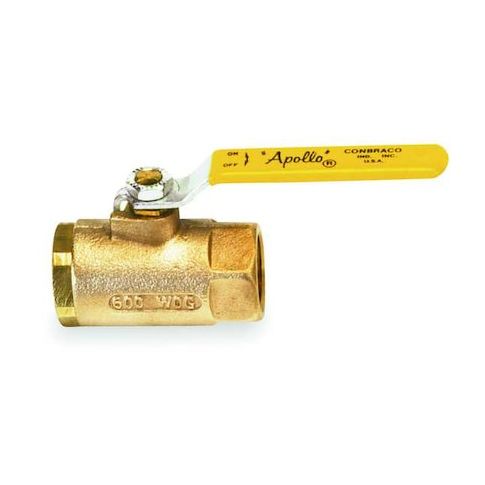

The APOLLO VALVES 7010401 is a 3/4 in manual 2-way ball valve in the 70 Series. It has a two-piece inline bronze body with female NPT connections on both ends (FNPT x FNPT) and a standard port design. This valve is intended for general-purpose flow control and is rated for steam service, with a maximum pressure of 600 PSI CWP, 150 PSI WSP, and a temperature range of -20 to 450 degrees F.
Key Features:
- Body and ball materials: Bronze body with a chrome plated bronze ball.
- Connection size and type: 3/4 in female NPT connections on both sides.
- Valve configuration: 2-way, inline, two-piece ball valve with manual lever handle.
- Port style: Standard port design.
- Seat and seals: PTFE seat material and PTFE seals.
- Stem design: Blowout resistant brass stem with adjustable stem packing gland.
- Construction: Heavy pattern construction.
- Pressure and temperature: Rated to 600 PSI CWP, 150 PSI WSP, and vacuum service to 29 in Hg
- operating range -20 to 450 degrees F.
- Handle: Yellow lever handle made from PVC and zinc-plated steel
- non-locking design.
- Standard: MSS SP-110.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 1.50
- Package Height: 6.40
- Package Weight: 1.30
