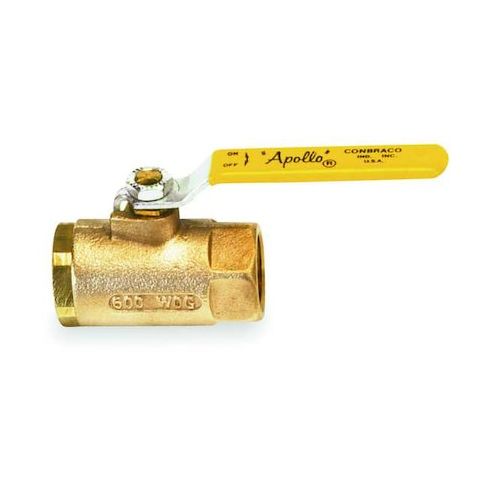

1/4" FNPT Bronze Ball Valve Inline MPN:7010101
Free Shipping
In Stock
The Apollo 70 Series 1/4in FNPT Bronze Ball Valve is a reliable and versatile solution for various industrial applications. Ideal for use in water treatment, chemical processing, and HVAC systems, this valve provides trusted performance and a wide range of options. Its premium materials and heavy-duty construction ensure long-lasting durability, while adjustable stem packing gland and blowout proof stem design provide added safety features. Suitable for use in a variety of settings, including commercial and residential buildings, this valve is manufactured in the USA and meets ARRA compliance requirements.
Top product features:
- Adjustable Stem Packing Gland
- Blowout Proof Stem Design
- RPTFE Seats and MPTFE Stem Packing Rings
Top product applications:
- General purpose water treatment systems
- Industrial process control systems
- Hydraulic systems and power transmission applications
The APOLLO VALVES 7010101 is a manual 2-way ball valve from the 70 Series with a two-piece inline bronze body and standard port design. It has 1/4 in female NPT connections on both sides (FNPT x FNPT) for use in piping systems handling steam and other compatible media. This valve features a chrome plated bronze ball, PTFE seats and seals, a brass blowout-resistant stem, and a lever handle made of PVC and zinc-plated steel. It is rated for 600 PSI CWP, 150 PSI WSP, vacuum service to 29 in Hg, and a temperature range of -20 to 450 degrees F.
Key Features of the APOLLO VALVES 7010101 Ball Valve:
- Valve Type: Manual 2-way ball valve for inline shutoff service.
- Body Material: Bronze body with heavy pattern construction.
- Connection Size: 1/4 in female NPT on both ends.
- Port Style: Standard port design.
- Ball Material: Chrome plated bronze ball.
- Seat and Seal Material: PTFE seats and seals.
- Stem Design: Brass stem with blowout-resistant construction and adjustable packing gland.
- Handle: Yellow lever handle made from PVC and zinc-plated steel
- non-locking design.
- Pressure Ratings: 600 PSI CWP and 150 PSI WSP.
- Temperature Range: -20 to 450 degrees F, with 500 degrees F maximum operating temperature listed.
- Standards: MSS SP-110
- also listed to ASTM B584-C84400, CRN, ARRA, BABA, and BAA.
- Testing: 100% factory tested.
- Manufacturing: Made in the USA.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.10
- Package Width: 1.10
- Package Height: 4.80
- Package Weight: 0.70
