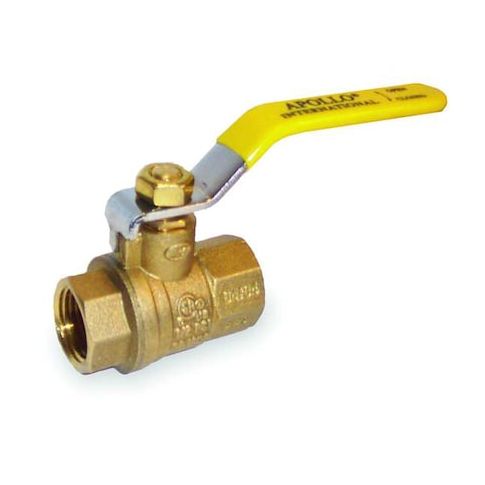

Ball Valve, 3/8 in Pipe, Full Port, 600 psi CWP, Lever Handle, FNPT, Chrome Plated Brass MPN:94A10201
Free Shipping
In Stock
The Apollo International 94A Forged Brass Ball Valve is a reliable and economical solution for general flow control applications. Ideal for use in HVAC, fuel gases, and fire protection systems, this valve offers maximum economy and consistent operation. With its 2-piece, full port design and blowout-proof stem, it provides added safety and durability. Additionally, the adjustable stem packing nut ensures a secure seal. 100% factory tested for quality, this valve meets most pertinent agency approvals, making it a trusted choice for a variety of applications, including trim and drain systems.
Top product features:
- 2-Piece, Full Port Design
- Blowout-Proof Stem
- Adjustable Stem Packing Nut
Top product applications:
- HVAC
- fuel gases
- fire protection
The APOLLO VALVES 94A10201 is a manual 2-way ball valve with a two-piece forged brass body and full port design. It has 3/8 in FNPT x FNPT inline connections and is used for general flow control applications, including HVAC, combustible gases, and fire protection trim and drain service. The valve features a chrome plated brass ball, brass stem, and operates within a temperature range of 0 to 400 degrees F with a maximum pressure rating of 600 PSI CWP.
Key Features:
- Full Port Ball: Full port design helps maintain flow through the 3/8 in valve.
- Two-Piece Brass Body: Forged brass inline body construction for general service use.
- Blowout-Resistant Stem: Brass stem is designed to resist blowout during operation.
- FNPT Connections: Female NPT connections on both ends, sized 3/8 in x 3/8 in.
- Manual Lever Handle: Yellow lever handle made of PVC and steel
- non-locking design.
- Seat and Seal Materials: PTFE seats and EPDM seals.
- Pressure and Temperature: Rated to 600 PSI CWP with a 0 to 400 degrees F operating range.
- Standards/Approvals: MSS SP-110
- UL 125, UL 1477, UL 842
- CSA
- FM.
- Factory Tested: 100% factory tested.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 2.50
- Package Height: 1.00
- Package Weight: 0.30
