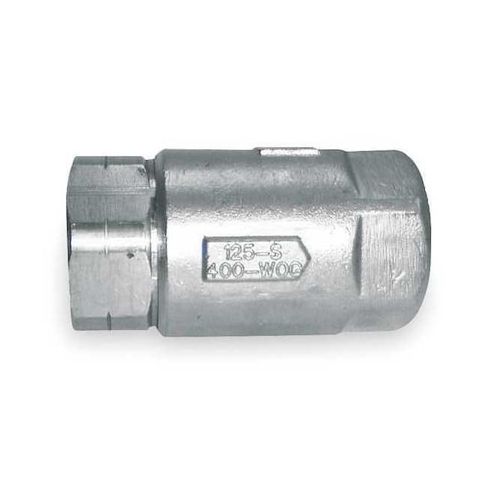

1-1/4" FNPT Stainless Steel Ball Cone Spring Check Valve MPN:6210601
Free Shipping
In Stock
Ensure reliable flow control with the 1-1/4in FNPT Stainless Steel Ball Cone Spring Check Valve from APOLLO VALVES. Designed for use in a variety of applications, including water treatment, chemical processing, and steam systems, this valve features a single-flow design and inline ball cone mechanism. Constructed from durable stainless steel, it provides excellent resistance to corrosion and can withstand pressures up to 400 psi. With a cracking pressure of 0.5 psi, this valve helps prevent backflow and ensures safe operation in temperatures ranging from 33°F to 180°F. Ideal for use in horizontal or vertical mounting orientations.
Top product features:
- It has a single flow design for inline use.
- It is an inline ball cone check valve.
- It has a stainless steel body and spring.
Top product applications:
- Water treatment systems
- Steam heating systems
- Petrochemical processing
APOLLO VALVES 6210601 is a 1-1/4 in inline ball cone spring check valve with FNPT x FNPT female threaded connections. It is configured for one-way flow applications and includes a spring-loaded ball check mechanism. The stainless steel body, RPTFE seat, and EPDM seal are specified for compressed air and steam service in horizontal or vertical installations.
Key Features:
- Valve type: Ball cone spring check valve with inline body design and single-flow configuration.
- Size and connections: 1-1/4 in nominal valve size with 1-1/4 in FNPT x FNPT connections
- female NPT on both ends.
- Body material: Stainless steel construction.
- Internal materials: Ball check mechanism, RPTFE seat, EPDM seal, and 316 stainless steel spring.
- Cracking pressure: 0.5 psi.
- Flow coefficient: Cv 44.
- Pressure ratings: 400 psig CWP maximum pressure
- 400 psi non-shock CWP maximum water pressure
- 150 psi SWP/WSP maximum steam pressure.
- Temperature range: 33 degrees F minimum operating temperature to 350 degrees F maximum operating temperature.
- Mounting orientation: Horizontal or vertical.
- Standards: CRN.
- Dimensions: 4.19 in overall length, 2-1/8 in overall height, 4-1/16 in width.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.90
- Package Height: 4.60
- Package Weight: 2.46
