1/2" FNPT Bronze Ball Cone Spring Check Valve MPN:6110301
Free Shipping
In Stock
Protect your systems with the reliable Apollo 61 Series Ball Cone Check Valves. These valves offer exceptional resistance to chemicals and corrosion, making them well-suited for a broad range of applications, including saturated steam and chemical service. With a tight shut-off and flow straight-through design, they ensure efficient operation and prevent reverse flow. Made in the USA, these valves are 100% factory tested for quality assurance. Suitable for both horizontal and vertical flow with upward flow, they provide reliable protection for your systems, making them an ideal choice for various industries and applications.
Top product features:
- Spring Actuated
- Tight Shut-off with Liquid Media
- Flow Straight-Through Design Efficiency
Top product applications:
- Saturated steam service
- Chemical service
- Horizontal and vertical flow with upward flow

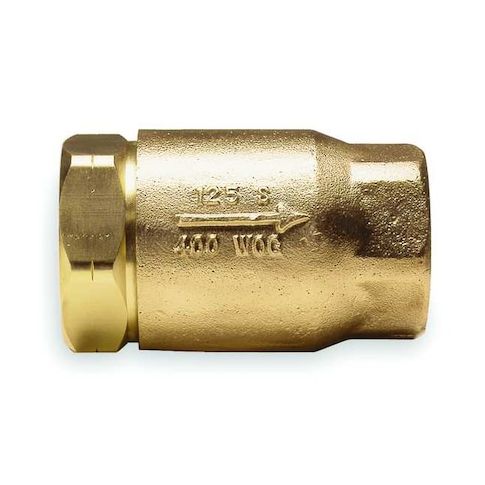

The APOLLO VALVES 6110301 is a 1/2 in inline Ball Cone spring check valve for general purpose and steam service. It has a cast bronze body with FNPT x FNPT female connections, a spring-actuated ball check mechanism, and an RPTFE Ball Cone and seat for chemical and corrosion resistance. This valve is designed for straight-through flow and can be installed in horizontal or vertical lines with upward flow.
Key Features of the APOLLO VALVES 6110301 Ball Cone Spring Check Valve:
- 1/2 in FNPT x FNPT connections: Female NPT threaded ends on both sides for inline piping.
- Ball Cone spring check mechanism: Spring-actuated design that helps control reverse flow.
- Bronze body: Cast bronze construction for plumbing and valve service.
- RPTFE Ball Cone and seat: RPTFE internal components for chemical resistance.
- Cracking pressure: 0.5 psi opening pressure.
- Pressure ratings: 400 psi non-shock CWP at 100 degrees F and 125 psi steam working pressure at 350 degrees F.
- Temperature range: 33 to 406 degrees F operating temperature.
- Mounting orientation: Can be installed horizontally or vertically.
- Flow coefficient: Cv 1.4.
- Factory tested: 100% factory tested.
- Standards: Build America Buy America Act, Buy American Act, and CRN.
- Dimensions: 2.31 in overall length and 1-1/8 in overall height.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.10
- Package Height: 3.80
- Package Weight: 0.45
