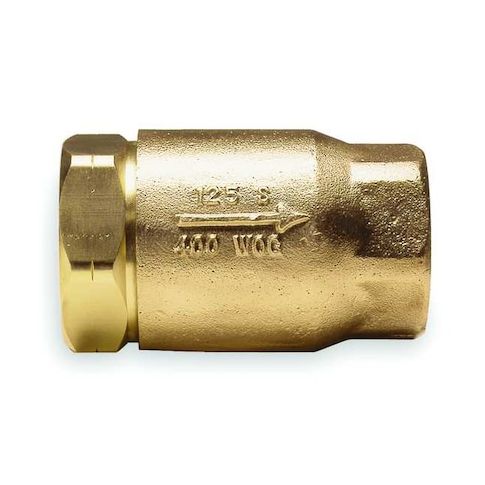

3/8" FNPT Bronze Ball Cone Spring Check Valve MPN:6110201
Free Shipping
In Stock
The 3/8in FNPT Bronze Ball Cone Spring Check Valve is a reliable and efficient solution for various applications. Ideal for use in water, steam, and other low-pressure systems, this valve ensures one-way flow and prevents backflow, reducing the risk of contamination and damage. Its bronze body and stainless steel spring provide durability and resistance to corrosion, while its EPDM seal ensures a tight seal. With a maximum temperature range of 180°F and a maximum water pressure of 400 psi, this valve is suitable for use in a variety of industries, including HVAC, plumbing, and industrial processes.
Top product features:
- It has a single flow design for efficient fluid flow.
- It is an inline ball cone check valve for easy installation and reduced pressure drop.
- It has a stainless steel spring for reliable operation in high temperature applications.
Top product applications:
- Industrial Water Treatment Systems
- Steam Power Plant Applications
- HVAC Systems
APOLLO VALVES 6110201 is a 3/8 in. inline ball cone spring check valve with FNPT x FNPT female threaded connections. It is a bronze general-purpose check valve intended for one-direction flow applications and includes a ball check mechanism that responds to flow stoppage or reverse flow. The valve has a 0.5 psi cracking pressure and is rated for steam service.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Body material: Cast bronze
- Connection size: 3/8 in. x 3/8 in.
- Connection type: FNPT x FNPT
- female x female NPT
- Check mechanism: Ball
- Flow design: Single
- Cv: 1.21
- Media: Steam
- Pressure ratings: 400 psi at 100 degrees F maximum pressure
- 400 psi non-shock CWP water pressure
- 125 psi at 350 degrees F steam
- 125 psi SWP
- Temperature range: 33 degrees F minimum to 406 degrees F maximum
- Seal material: EPDM, Viton
- Seat and check mechanism material: RPTFE
- Spring material: 316 stainless steel
- Mounting orientation: Horizontal or vertical
- Overall size: 2.13 in. length x 1-1/8 in. height x 1.12 in. width
- Standards: Build America Buy America (BABA) Act, Buy American Act (BAA), CRN
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.10
- Package Height: 4.00
- Package Weight: 0.45
