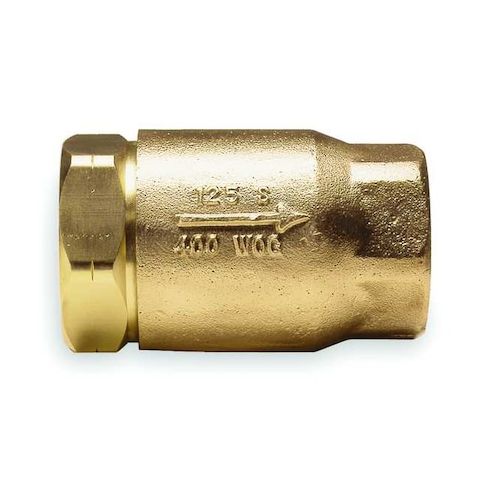

2-1/2" FNPT Bronze Ball Cone Spring Check Valve MPN:6110901
Free Shipping
In Stock
This 2-1/2in FNPT Bronze Ball Cone Spring Check Valve from Apollo Valves is a reliable and efficient solution for various industrial applications. Designed for use in horizontal and vertical orientations, it prevents backflow and ensures a safe and controlled fluid flow. The bronze body and stainless steel spring provide durability and resistance to corrosion, while the EPDM seal and RPTFE seat ensure a tight seal. Suitable for use in water and steam systems, this valve can withstand pressures up to 400 psi and temperatures up to 180°F, making it an ideal choice for a wide range of industries, including HVAC, plumbing, and power generation.
Top product features:
- Inline ball cone design allows for smooth flow and minimal pressure drop
- Stainless steel spring provides durability and resistance to corrosion
- RPTFE seat material ensures a tight seal and prevents leakage
Top product applications:
- Industrial Water Treatment Systems
- Steam Boiler Systems
- Hydronic Heating Systems
APOLLO VALVES 6110901 is a 2-1/2 in inline ball cone spring check valve with FNPT x FNPT female threaded connections. It is specified for general-purpose service and steam media, using a spring-loaded ball cone mechanism for one-direction flow applications. The cast bronze body, EPDM seal, RPTFE seat, and 316 stainless steel spring are specified valve construction materials for compatible piping systems.
Key Features:
- Valve type: Ball cone spring check valve with 2-way inline body design.
- Size and connections: 2-1/2 in nominal size with female NPT connections on both ends.
- Body material: Cast bronze.
- Internal components: Ball check mechanism with RPTFE seat and EPDM seal.
- Cracking pressure: 0.5 psi.
- Flow rating: 175 gpm with a Cv of 175.
- Pressure ratings: 400 psi non-shock CWP / 400 psi operating pressure
- steam rating 125 psi SWP.
- Temperature range: 33 degrees F minimum to 406 degrees F maximum.
- Mounting orientation: Horizontal or vertical.
- Dimensions: 7 in overall length, 3-1/2 in overall height.
- Standards: Build America Buy America (BABA) Act, Buy American Act (BAA), CRN.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 6.00
- Package Height: 5.00
- Package Weight: 11.00
