Ball Valve, 1 1/4 in Pipe, Full Port, 600 psi CWP, Lever Handle, FNPT, Chrome Plated Brass MPN:94A10601

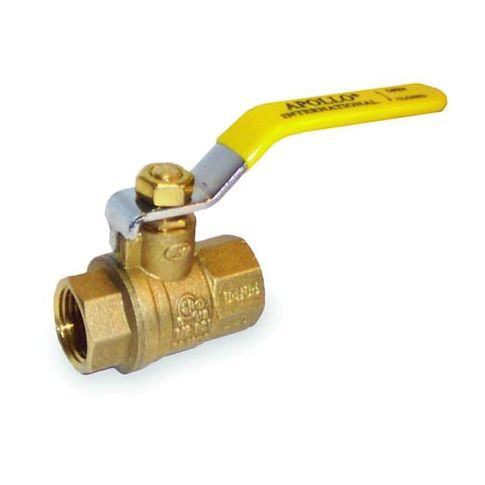

• The APOLLO VALVES 94A10601 is a manual 2-way ball valve with a two-piece inline forged brass body and 1-1/4 in FNPT x FNPT connections. It is designed for general flow control and is used with combustible gases, HVAC, fuel gases, and fire protection trim and drain applications. This valve has a full port design, a blowout-resistant brass stem, and is factory tested.

  Key features of the APOLLO VALVES 94A10601 ball valve:


  • 1-1/4 in valve size with female NPT connections on both ends for inline piping.
  • Full port chrome plated brass ball supports unrestricted flow through the valve.
  • Brass body and brass stem with EPDM seals and PTFE seats.
  • Lever handle with steel and PVC construction and a yellow handle cover.
  • Blowout-resistant stem and adjustable stem packing nut.
  • Pressure rating: 600 PSI CWP.
  • Temperature range: 0 to 400 degrees F.
  • Meets MSS SP-110
  • UL 125, UL 1477, and UL 842 standards
  • also listed to CSA and FM.
  • Overall length: 3.31 in
  • handle length: 4.57 in
  • handle height: 3.05 in.
