1" FNPT Bronze Ball Valve Inline MPN:75-105-01
Free Shipping
In Stock
This Apollo ball valve meets OSHA standards and provides easy, safe maintenance of pneumatic tools. The valve can be padlocked in the OPEN or CLOSED position with the same hardware, ensuring secure operation. Its adjustable packing gland, blowout-proof stem design, and RPTFE seats and stuffing box ring ensure reliable performance. The hardened ball provides wear resistance, extending the valve's lifespan. Suitable for use in industrial settings, this valve is ideal for applications where pneumatic tool maintenance is a priority, such as in manufacturing, construction, and oil and gas industries. Its compact design and easy maintenance features make it a valuable addition to any facility.
Top product features:
- Adjustable Packing Gland
- Blowout-Proof Stem Design
- RPTFE Seats and Stuffing Box Ring
Top product applications:
- Pneumatic tool maintenance
- Padlocking in OPEN or CLOSED position
- Industrial automation

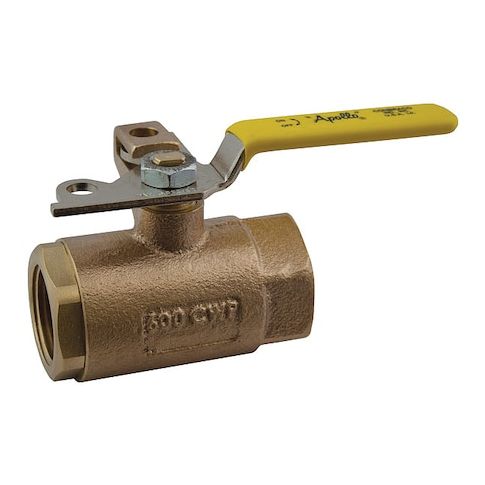

The APOLLO VALVES 75-105-01 is a 1 in manual ball valve for air service with a two-piece inline bronze body and standard port design. It features female NPT connections on both ends and a locking lever handle that may be padlocked in the open or closed position. The valve includes a blowout-resistant brass stem, chrome plated brass ball, and PTFE seat and seal materials. It is rated for 600 PSI CWP, 150 PSI WSP, and a temperature range of 50 to 200 degrees F.
Key Features:
- 1 in FNPT x FNPT connections: Female NPT connections on both sides for threaded pipe installation.
- For air media: Intended for pneumatic applications and maintenance of air tools.
- Locking lever handle: Handle may be padlocked in the open or closed position.
- Two-piece inline body: Bronze valve body with 2-way flow path.
- Blowout-resistant stem: Brass stem design helps retain the stem within the valve body.
- Chrome plated brass ball: Ball material with a hardened, wear-resistant surface.
- PTFE seat and seal materials: PTFE seat and seal components are used for valve sealing surfaces.
- Pressure and temperature ratings: 600 PSI CWP, 150 PSI WSP, with a 50 to 200 degrees F operating range.
- MSS SP-110: Listed compliance standard provided for this valve.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 5.60
- Package Height: 2.70
- Package Weight: 2.20
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
