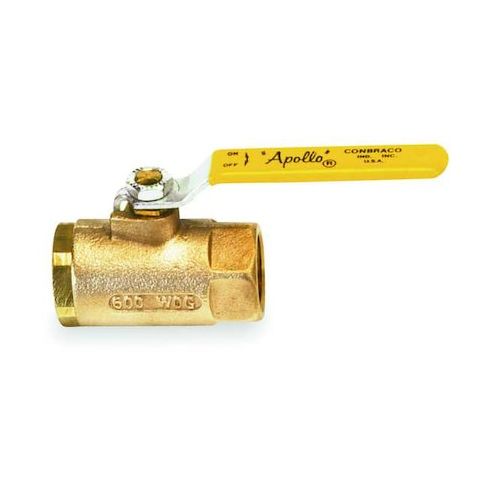

Manual 2-Way Ball Valve, 1/2 in FNPT x 1/2 in FNPT, Standard Port, 600 psi CWP, Lever Handle, Bronze MPN:7010301
Free Shipping
In Stock
The Apollo 70 Series 2-Way Ball Valve is a reliable and versatile solution for various industrial applications. Suitable for use in water treatment, HVAC, and chemical processing systems, this bronze ball valve offers a wide range of benefits, including adjustable stem packing gland, blowout proof stem design, and RPTFE seats and MPTFE stem packing rings for enhanced durability and leak resistance. With a chromium-plated ball and 100% factory testing, this valve provides trusted performance and meets ARRA compliance standards. Its compact design and standard port make it easy to install and integrate into existing systems, ensuring efficient and reliable operation.
Top product features:
- Premium Materials and Heavy Duty Construction
- Adjustable Stem Packing Gland
- Blowout Proof Stem Design
Top product applications:
- Industrial Process Control Systems
- Pneumatic Systems
- Hydraulic Systems
APOLLO VALVES 7010301 is a 1/2 in manual ball valve from the Apollo® 70 Series. It is a two-piece, inline bronze valve with a standard port, 2-way design and female NPT connections on both ends (FNPT x FNPT). This valve is used for flow control in piping systems and is rated for steam service, with a maximum pressure of 600 PSI CWP, 150 PSI WSP, and a temperature range of -20 to 450 degrees F.
Key Features of the APOLLO VALVES 7010301 Ball Valve:
- Bronze body and chrome plated bronze ball: Provides the listed valve body and ball materials.
- Two-piece inline construction: Features a two-piece valve structure for inline installation.
- Standard port, 2-way design: Supports on/off flow control through a standard port valve.
- 1/2 in FNPT x FNPT connections: Female NPT threads on both sides for 1/2 in pipe connections.
- Blowout resistant brass stem: Stem design helps retain the stem within the valve body.
- PTFE seats and seals: Includes PTFE seat and seal materials.
- Lever handle: Yellow lever handle made from PVC and zinc-plated steel
- non-locking design.
- Heavy pattern construction: Listed feature for the valve body construction.
- Factory tested: Valve is 100% factory tested as stated by the manufacturer.
- Standards: MSS SP-110
- ASTM B584-C84400
- CRN
- ARRA, BABA, and BAA listed.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.40
- Package Height: 1.20
- Package Weight: 0.55
