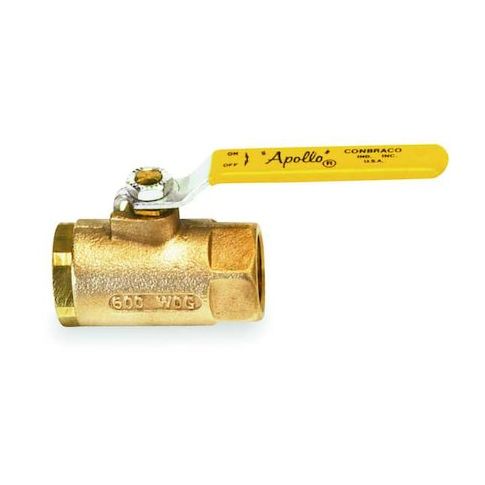

Manual 2-Way Ball Valve, 1-1/2 in FNPT x 1-1/2 in FNPT, Full Port, 600 psi CWP, Lever Handle, Bronze MPN:7010701
Free Shipping
In Stock
The Apollo 70 Series 2-Way Ball Valve is a reliable and versatile solution for a wide range of applications. Suitable for general purpose use, this valve features a heavy-duty construction, adjustable stem packing gland, and blowout proof stem design for added safety. Its premium materials and 100% factory testing ensure trusted performance. With its full port design and 600 psi CWP rating, it's ideal for use in various industries, including water treatment, chemical processing, and HVAC. Its compact design and easy-to-use lever handle make it a convenient choice for plumbers, engineers, and maintenance professionals.
Top product features:
- Adjustable Stem Packing Gland
- Blowout Proof Stem Design
- RPTFE Seats
Top product applications:
- Potable water systems
- Industrial process control
- Chemical processing
The APOLLO VALVES 7010701 is a manual 2-way ball valve from the 70 Series with a two-piece bronze body and standard port design. It has 1-1/2 in female NPT connections on both ends for inline installation. The valve is built for general service with steam, using a chrome plated bronze ball, PTFE seats and seals, and a blowout resistant brass stem.
Key Features:
- Two-piece inline body: Bronze construction with a heavy pattern design.
- Connection type: 1-1/2 in FNPT x FNPT ends for threaded pipe connections.
- Standard port ball: Provides a standard port flow path in a 2-way valve configuration.
- Manual lever handle: Yellow lever handle made of PVC and zinc-plated steel
- non-locking design.
- Ball and stem materials: Chrome plated bronze ball with a brass blowout resistant stem.
- Seat and seal materials: PTFE seat and seal materials are used for sealing surfaces.
- Pressure ratings: 600 PSI CWP and 150 PSI WSP.
- Temperature range: Rated from -20 degrees F to 450 degrees F, with 500 degrees F maximum operating temperature listed.
- Vacuum rating: 29 in Hg.
- Standard: MSS SP-110.
- Factory tested: 100% factory tested.
- Made in USA: Manufactured in Apollo’s South Carolina plants.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.80
- Package Width: 4.50
- Package Height: 2.40
- Package Weight: 4.50
