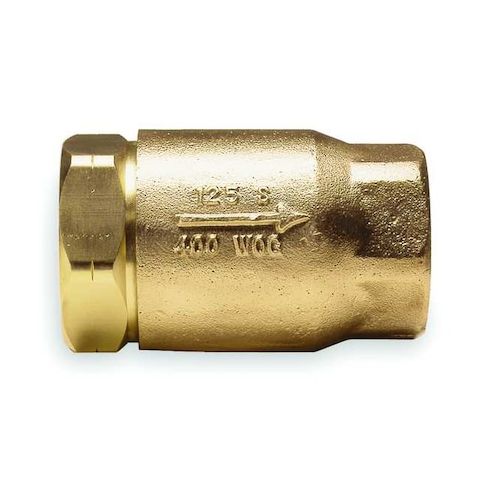

1/4" FNPT Bronze Ball Cone Spring Check Valve MPN:6110101
Free Shipping
In Stock
The 1/4in FNPT Bronze Ball Cone Spring Check Valve from APOLLO VALVES is a reliable and efficient solution for various applications. Ideal for use in water and steam systems, this valve provides a self-acting, spring-loaded design that prevents backflow and ensures a tight seal. Its bronze body and stainless steel spring ensure durability and resistance to corrosion. With a cracking pressure of 0.5 psi and a max. water pressure of 400 psi, this valve is suitable for a wide range of industries, including HVAC, plumbing, and chemical processing. Its compact size and horizontal/vertical mounting orientation make it a versatile addition to any system.
Top product features:
- Single flow design allows for unidirectional flow
- Inline ball cone mechanism provides a compact design
- Stainless steel spring material ensures durability and resistance to corrosion
Top product applications:
- Pressure relief systems
- Steam trap systems
- Water treatment systems
APOLLO VALVES 6110101 is a 1/4 in inline ball cone spring check valve with FNPT x FNPT female threaded connections. Manufacturer-stated applications include general service and steam service within the listed pressure and temperature ratings. It is configured with a spring-loaded ball check mechanism for one-direction flow applications. The bronze body, 0.5 psi cracking pressure, and horizontal or vertical mounting options are for use in threaded piping systems.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Size: 1/4 in nominal valve size with 1/4 in FNPT x FNPT connections
- Body material: Bronze
- manufacturer-stated body material: cast bronze
- Check mechanism: Spring-loaded ball
- Cracking pressure: 0.5 psi
- Flow coefficient: Cv 0.85
- Pressure ratings: 400 psi non-shock CWP / 400 psi at 100 degrees F
- steam 125 psi SWP / 125 psi at 350 degrees F
- Temperature range: 33 degrees F minimum to 406 degrees F maximum
- Seat material: RPTFE
- Seal materials: EPDM, Viton
- Spring material: 316 stainless steel
- Mounting orientation: Horizontal or vertical
- Overall size: 2.06 in length x 1-1/8 in height x 1.12 in width
- Standards: Build America Buy America (BABA) Act, Buy American Act (BAA), CRN
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.10
- Package Height: 1.00
- Package Weight: 0.45
