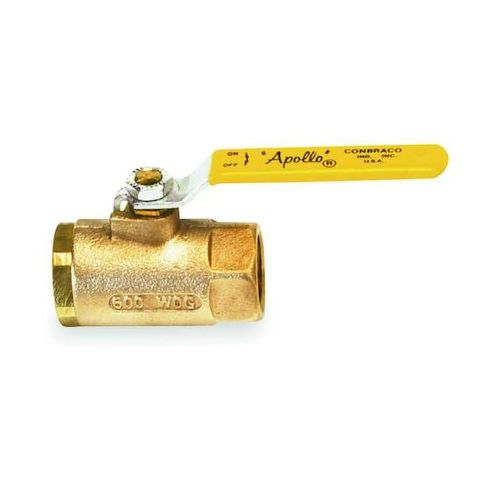

Manual 2-Way Ball Valve, 1 in FNPT x 1 in FNPT, Standard Port, 600 psi CWP, Lever Handle, Bronze MPN:7010501
Free Shipping
In Stock
The Apollo 70 Series Manual 2-Way Ball Valve is a reliable and durable solution for various applications, including water treatment, irrigation, and HVAC systems. Its heavy-duty construction and premium materials ensure trusted performance, even in high-pressure situations up to 600 psi CWP. The adjustable stem packing gland and blowout proof stem design provide added safety and security. This versatile valve is ideal for use in residential and commercial settings, offering a wide range of options for customization and configuration. Its compact size and ease of use make it a popular choice among professionals and DIYers alike.
Top product features:
- Adjustable Stem Packing Gland
- Blowout Proof Stem Design
- Chromium Plated Ball
Top product applications:
- Industrial Process Control
- Water Treatment Plants
- Chemical Processing
The APOLLO VALVES 7010501 is a 1 in manual ball valve from the Apollo 70 Series. It is a two-piece, inline, 2-way valve with female NPT connections on both ends (FNPT x FNPT) and a standard port. The valve body is bronze with a chrome plated bronze ball, PTFE seat and seal materials, and a brass blowout resistant stem. It is designed for steam service and is factory tested.
Key Features of the APOLLO VALVES 7010501 Ball Valve:
- 1 in FNPT x FNPT connections: Female NPT threads on both sides for threaded pipe installation.
- Two-piece inline body: Two-piece bronze body with a 2-way flow path.
- Standard port ball: Standard port design for general flow control.
- Manual lever handle: Lever-operated valve with a non-locking yellow handle made from PVC and zinc-plated steel.
- Blowout resistant stem: Brass stem design helps retain the stem under pressure.
- PTFE seating and sealing components: PTFE seat and seal materials, with MPTFE stem packing and an adjustable stem packing gland.
- Pressure ratings: 600 PSI CWP and 150 PSI WSP.
- Temperature range: -20 to 450 degrees F, with a maximum operating temperature of 500 degrees F.
- Ball material: Chrome plated bronze ball for the valve closure component.
- Standards: MSS SP-110
- also listed to ASTM B584-C84400, CRN, ARRA, BABA, and BAA.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.80
- Package Height: 6.70
- Package Weight: 1.75
