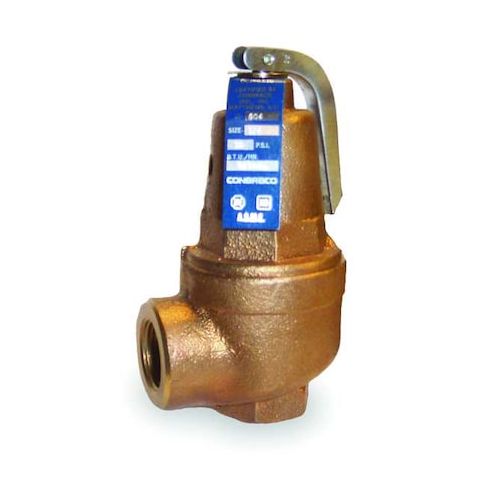

Safety Relief Valve, 3/4In, 150 psi, Bronze MPN:1060434
Free Shipping
In Stock
Protect your hot water heating boilers and systems with the Apollo Valves Safety Relief Valve, certified to ASME Section IV standards. This high-capacity valve is made from corrosion-resistant bronze and can be pre-set to any pressure between 15 and 160 psig. Its diaphragm-isolated spring chamber ensures reliable operation, even in extreme temperatures up to 250°F. Suitable for use in a variety of applications, including hot water heating boilers, systems, and equipment, this valve provides peace of mind and ensures safe operation. Its compact design makes it easy to integrate into existing systems.
Top product features:
- ASME Section IV Certified Capacity
- Corrosion Resistant Construction
- Diaphragm Isolated Spring Chamber
Top product applications:
- Protection of hot water heating boilers
- Protection of systems related to hot water heating boilers
- Protection of similar equipment to hot water heating boilers
APOLLO VALVES 1060434 is a bronze safety relief valve for hot water heating boilers, heating systems, and similar water-based equipment. It is ASME Section IV capacity certified and is factory set to 150 psi, with an available pressure range of 15 to 160 psi. This valve is designed for water service with 3/4 in female NPT inlet and outlet connections.
Key Features:
- Application: For heating systems using water as the media.
- Body Material: Bronze body with brass disc, silicone seat, and alloy steel spring.
- Pressure Setting: Factory set at 150 psi
- pressure range 15 to 160 psi.
- Operating Pressure: 30 to 174 psi maximum operating pressure range.
- Temperature Range: Operates from 32 to 249.8 degrees F
- listed temperature range 0 to 250 degrees F.
- Connections: 3/4 in FNPT inlet and 3/4 in FNPT outlet.
- Capacity: Rated at 3,116,000 BtuH.
- Construction: Corrosion-resistant construction with diaphragm-isolated spring chamber.
- Test Lever: Includes a test lever.
- Dimensions: 9 1/2 in overall length and 5 5/8 in overall height.
- Certification: ASME Section IV capacity certified.
- Country of Origin: Made in the USA.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 3.70
- Package Height: 2.80
- Package Weight: 2.50
