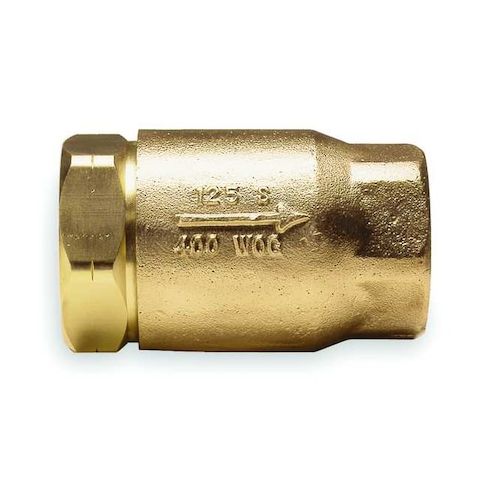

3/4" FNPT Bronze Ball Cone Spring Check Valve MPN:6110401
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0485965
3/4" FNPT Bronze Ball Cone Spring Check Valve
The 3/4in FNPT Bronze Ball Cone Spring Check Valve is a reliable and efficient solution for various applications, including water treatment, irrigation, and HVAC systems. Its single-flow design and inline ball cone mechanism ensure smooth operation and minimize pressure drop. Constructed from durable bronze and stainless steel materials, this valve can withstand temperatures up to 180°F and pressures up to 400 psi. Suitable for horizontal or vertical mounting, it provides a secure seal with EPDM and RPTFE materials. Perfect for new installations or replacements, this valve is a cost-effective and long-lasting option for a wide range of applications.
Top product features:
- It has a ball cone design for smooth flow and minimal pressure drop.
- It features a spring-loaded mechanism to ensure reliable shut-off and prevent backflow.
- It has a bronze body for durability and resistance to corrosion in water and steam applications.
Top product applications:
- Industrial Water Treatment Systems
- Steam Distribution Systems
- Hydraulic Pneumatic Systems
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Ball Cone, Body Material - Valves Bronze, Pipe or Tube Size 3/4 in, Connection Type FNPT x FNPT, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 180 Degrees F, Min. Temp. - Valves 33 Degrees F, Max. Water Pressure - Valves 400 psi, Max. Steam Pressure - Valves 125 psi WSP, Seat Material RPTFE, Spring Material Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.10
- Package Height: 4.00
- Package Weight: 0.80
Product info last updated on January 28, 2026 5:20pm UTC
Category: Pipes, Valves and Fittings
