Pipe Protection Saddle, 3/4 To 1 1/4 In MPN:0500071022
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1205477

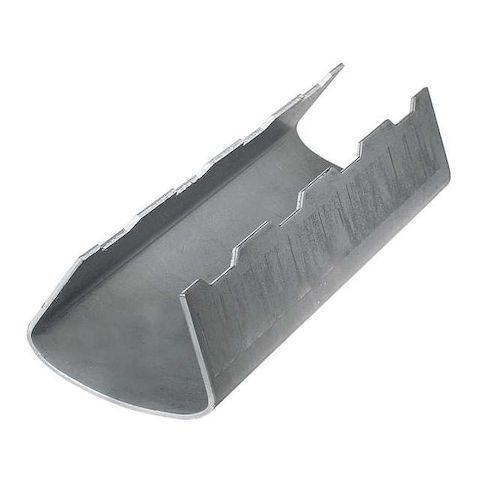

Pipe Protection Saddle, 3/4 To 1 1/4 In
Protect your pipes with the Anvil Pipe Protection Saddle, a heavy-duty steel solution designed for insulation outside diameters up to 0.8 inches. Suitable for use on pipes ranging from 3/4 to 1 1/4 inches in size, this saddle offers a load capacity of 1,200 pounds and can withstand temperatures up to 650 degrees Fahrenheit. Ideal for applications in the oil and gas industry, power generation, and water treatment, the Anvil Pipe Protection Saddle provides reliable protection against damage and wear. Its compact design and easy installation make it a convenient choice for pipe insulation and protection needs.
Top product features:
- Protects pipes from damage and wear
- Maintains pipe insulation in place
- Supports loads up to 1,200 pounds
Top product applications:
- Pipe Protection Saddle for Insulation of Underground Piping
- Pipe Protection Saddle for Insulation of Above-Ground Piping
- Pipe Protection Saddle for Protection of Insulated Piping from Mechanical Damage
Pipe Protection Saddle, Finish Not Applicable, For Insulation Outside Diameter 0.8 in, Insulation Thickness Range 1 in, Load Capacity 1,200 lb, Material Steel, Maximum Operating Temperature 650 Degrees F, Mount Type Roller, Overall Length 12 in, For Pipe Size 3/4 in to 1 1/4 in, Standards ANSI/MSS SP-69, Federal Specification A-A-1192A, Type 39A, Federal Specification A-A-1192A, Type 39B, MSS SP-58, Type 39A, MSS SP-58, Type 39B, WW-H-171-E, Type 40A, WW-H-171-E, Type 40B
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 1.50
- Package Height: 1.30
- Package Weight: 1.30
Product info last updated on February 3, 2026 12:13am UTC
Category: Pipes, Valves and Fittings
