Pipe Protection Saddle, 3 1/2 To 5 In MPN:0500071584
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0341765

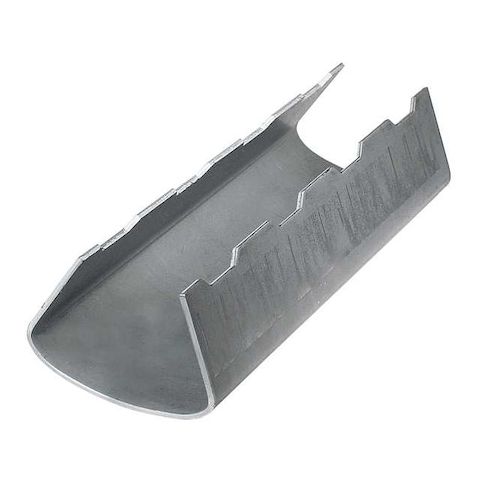

Pipe Protection Saddle, 3 1/2 To 5 In
Protect your pipes from damage and wear with the Anvil Pipe Protection Saddle. Designed for use on pipes with an outside diameter of 3.5 to 5 inches, this steel saddle provides a load capacity of 1,200 pounds and can withstand temperatures up to 650 degrees Fahrenheit. Ideal for use in high-temperature applications, such as in power plants or industrial settings, this saddle also helps to prevent corrosion and extend the lifespan of your pipes. Its compact design makes it easy to install and maintain, making it a reliable choice for a variety of industrial and commercial applications.
Top product features:
- Protects pipes from damage with a steel saddle design
- Provides insulation protection with a thickness range of 1-1/2 inches
- Supports loads up to 1,200 pounds
Top product applications:
- Pipe Protection Saddle for Insulation of Industrial Piping Systems
- Pipe Protection Saddle for Protection of Insulated Pipes in High-Temperature Applications
- Pipe Protection Saddle for Use in Compressed Air and Gas Systems
Pipe Protection Saddle, Finish Not Applicable, For Insulation Outside Diameter 3.5 in, Insulation Thickness Range 1-1/2 in, Load Capacity 1,200 lb, Material Steel, Maximum Operating Temperature 650 Degrees F, Mount Type Roller, Overall Length 12 in, For Pipe Size 3 1/2 in to 5 in, Standards ANSI/MSS SP-69, Federal Specification A-A-1192A, Type 39A, Federal Specification A-A-1192A, Type 39B, MSS SP-58, Type 39A, MSS SP-58, Type 39B, WW-H-171-E, Type 40A, WW-H-171-E, Type 40B
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 4.00
- Package Height: 2.30
- Package Weight: 2.99
Product info last updated on April 24, 2026 7:49am UTC
Category: Pipes, Valves and Fittings
