Andre XE-104 - Spring Mounts 5-5/8"L x 2-1/4"W x 4"H XE-104
Andre XE-104 - Spring Mounts 5-5/8"L x 2-1/4"W x 4"H

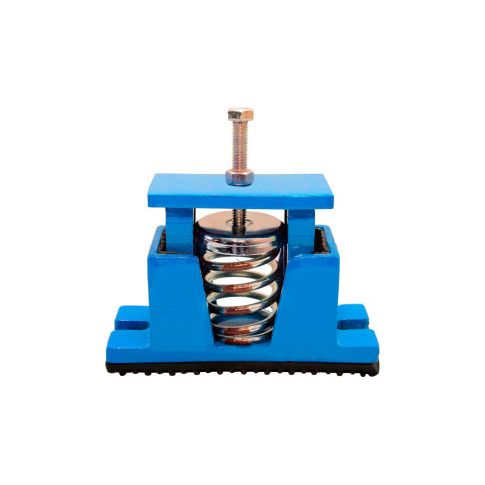

The Andre XE-104 Spring Mounts are designed to solve troublesome vibration problems in critical areas on concrete or wooden floors. These mounts feature a high static deflection spring and a two-piece cast iron housing, providing effective noise and vibration control. With a non-skid elastomeric acoustic pad on the base and slotted mounting holes, they are easy to install and secure. Ideal for use in industrial and commercial settings, these mounts can be used in a variety of applications, including machinery installation, equipment mounting, and floor-leveling systems. They are also suitable for use in areas where metal-to-metal contact is a concern.
Top product features:
- These spring mounts feature a one inch deflection to solve troublesome vibration problems.
- The mounts have a two piece cast iron housing for the spring, which provides high static deflection.
- The mounts have a non-skid elastomeric acoustic pad on the base for easy bolting to the floor.
Top product applications:
- Noise and vibration control applications in critical areas on concrete floors
- Noise and vibration control applications in critical areas on wooden floors
- Vibration problems in industrial settings
Type "x-100" series spring mounts with one inch deflection solves troublesome vibration problems. These mounts are preferred over most rubber mounts due to the high static deflection of the spring. "x-100" series spring mounts are designed for noise and vibration control applications in critical areas on concrete or wooden floors. The mount features a two piece cast iron housing for the spring. The mounts are provided with slotted mounting holes with a non-skid elastomeric acoustic pad on the base for easy bolting to the floor. Resilient elastomeric snubbers on the inner panels prevent metal to metal contact and allow the spring to function properly. These mounts have a built in leveling device (external or internal). These spring mounts can also be supplied with flat or non-skid neoprene top surfaces in case of internal level adjustment. All springs are hot dip galvanized.
Additional Information
- UNSPSC: 23153130
- Brand: Andre
- Color: Blue
- Package Quantity: 1
- Country of Origin: CA
- FOB Origin: ON
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 5.00
Product info last updated on May 19, 2025 3:17am UTC
Category: Mounts, Pads and Vibration Dampers
