Andre YE-1-115 - Spring Mounts 7-1/2"L x 2-7/8"W x 5-1/2"H YE-1-115
Andre YE-1-115 - Spring Mounts 7-1/2"L x 2-7/8"W x 5-1/2"H

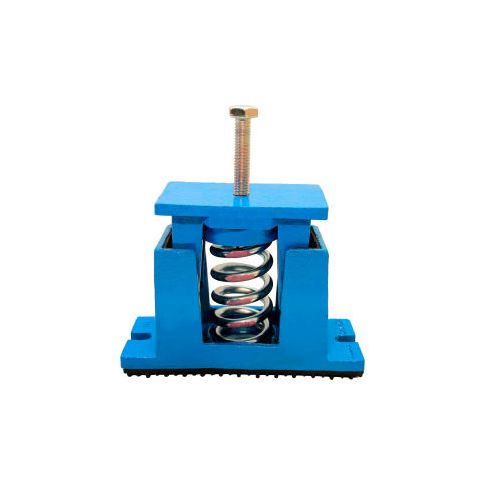

The Andre YE-1-115 Spring Mounts are a reliable solution for noise and vibration control in critical areas on concrete or wooden floors. These heavy-duty mounts feature a three-piece cast iron housing and a high-static-deflection spring design, making them a preferred choice over traditional rubber mounts. They are ideal for use in industrial settings, laboratories, and data centers where precision and stability are paramount. With their built-in leveling device and non-skid elastomeric acoustic pad, these mounts ensure stable and quiet operation, making them an essential component for any application requiring precise vibration control.
Top product features:
- One inch deflection to solve troublesome vibration problems
- Three piece cast iron housing for the spring
- Non-skid elastomeric acoustic pad on the base for bolting to the floor
Top product applications:
- Noise and vibration control applications in critical areas on concrete floors
- Noise and vibration control applications in critical areas on wooden floors
- Machine mounting on wooden or concrete floors to prevent metal to metal contact
Type "y-1" series mounts with one inch deflection solve troublesome vibration problems. These mounts are preferred over most rubber mounts due to the high static deflection of the springs. "y-1" type spring mounts are designed for noise and vibration control applications in critical areas on concrete or wooden floors. The y-1 mount features a three piece cast iron housing for the spring. The mounts are provided with slotted mounting holes and a non-skid elastomeric acoustic pad on the base for bolting to the floor. Resilient elastomeric snubbers on the inner panel prevent metal to metal contact and allow the spring to function properly. These mounts have a built in leveling device (external or internal). These spring mounts can also be supplied with flat top or non-skid neoprene top surfaces in case of internal level adjustment. All springs are hot dip galvanized.
Additional Information
- UNSPSC: 23153130
- Brand: Andre
- Color: Blue
- Package Quantity: 1
- Country of Origin: CA
- FOB Origin: ON
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 8.00
- Package Width: 5.00
- Package Height: 7.00
- Package Weight: 10.50
Product info last updated on May 19, 2025 3:17am UTC
Category: Mounts, Pads and Vibration Dampers
