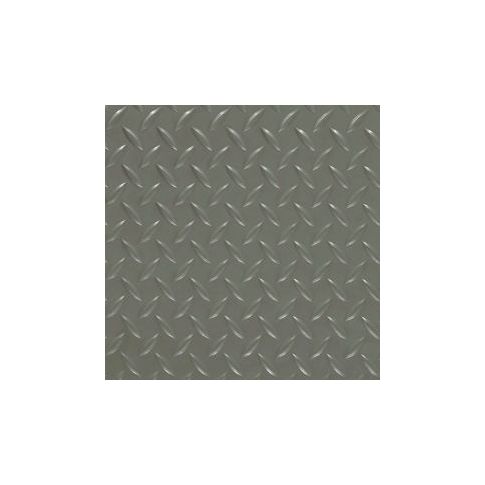

M+A Matting Military Diamond Switchboard Plate Mat 3/16" Thick 3' x 75' Gray 7841375100

Military diamond switchboard designed to protect workers in high voltage areas. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" meets strict military specification standard mil-dtl15562g type iii - pvc runner dielectric strength the floor covering shall not fail at less than 30000 volts when tested as specified - mil-dtl15562g 3/16" non-conductive 36" x 75' rolls standards & testing ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" voltage test mil-dtl-15562g min. 15000v for 1 minute pass dielectric strength test mil-dtl-15562g min. 30000v pass visual/dimensional exam mil-std-407 any visual degradation pass tensile strength astm d412 die c min. 800psi 1800psi pass ultimate elongated astm d412 die c min 75% 200% pass hardness astm d2440 95 +/-5 (shore a) 90 pass critical radiant flux astm e648 min 0.45 w/cm2 0.81 w/cm2 pass smoke density astm e662 max 450 400 pass flexibility test fed-std-501 method 3111 shall pass pass dimensional stability test astm d1204 +/-0.020 in/ft 0.009 in/ft pass gloss test astm d2457 50 70 pass color fed-std-595 as specified pass cleaning instructions ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" scrubbing with a deck brush (when needed) using detergent with a neutral ph rinsing with a hose or pressure washer mat should be laid flat or hung to dry always make sure the mat is dry before placing it back in service
