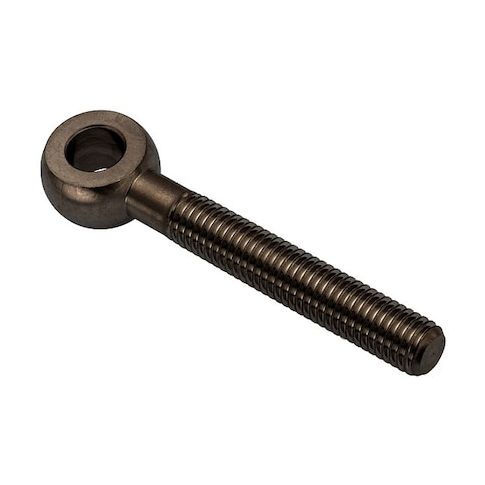

Fixed Rod End, Steel, Black Oxide, M12-1.75 Thrd Sz, 57 mm Thrd Lg MPN:ZEBM12X80-ALLOY-BX
Fixed Rod End, Steel, Black Oxide, M12-1.75 Thrd Sz, 57 mm Thrd Lg
This high-quality fixed rod end is designed for industrial and commercial applications, offering reliable performance and durability. The black oxide finish provides resistance to corrosion and wear, while the 4140 steel material ensures strength and stability. With a metric coarse thread and right-hand direction, this rod end is suitable for a wide range of uses, including machinery, equipment, and construction projects. Its compact size and lightweight design make it easy to integrate into existing systems, and the REACH and RoHS compliance ensures safe and environmentally friendly use. Ideal for applications requiring precision and reliability.
Top product features:
- Fixed rod end has a fully threaded metric coarse thread with a right-hand thread direction.
- The product has a steel eye with an inside diameter of 12 mm and an outside diameter of 25 mm.
- The rod end has a black oxide finish for corrosion resistance.
Top product applications:
- Machine tooling and manufacturing equipment
- Cranes and hoists
- Heavy machinery and equipment
Fixed Rod End, Eye Inside Diameter 12 mm, Eye Outside Diameter 25 mm, Eye Thickness 14 mm, Black Oxide, Steel, Material Grade/Class 4140, Material Quality Standards ASTM A320, REACH Compliant Yes, Hole Center-to-End Length 80 mm, RoHS Compliant Yes, Shank Diameter 12 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 57 mm, Thread Pitch 1.75 mm, Thread Size M12-1.75, Shank Length 67 1/2 mm, Externally Threaded, Shoulder Style Without Shoulder
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.10
- Package Height: 0.60
- Package Weight: 0.19
Product info last updated on March 22, 2026 8:16pm UTC
Category: Screws and Bolts
