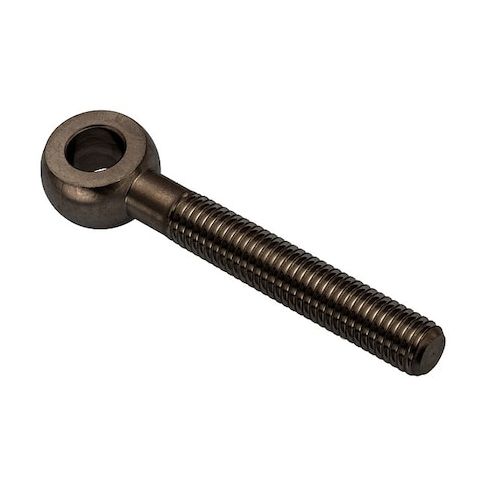

Fixed Rod End, Steel, Black Oxide, M12-1.75 Thrd Sz, 57 mm Thrd Lg MPN:ZEBM12X80-STL-BX
Fixed Rod End, Steel, Black Oxide, M12-1.75 Thrd Sz, 57 mm Thrd Lg
The Ampg Fixed Rod End is a versatile and reliable component ideal for a wide range of applications, including machinery, equipment, and industrial manufacturing. Its robust steel construction and black oxide finish provide excellent durability and corrosion resistance. With a threaded length of 57 mm and a M12-1.75 thread size, it can be easily integrated into various systems. The fixed rod end's eye design allows for secure attachment and smooth rotation, making it perfect for applications requiring high precision and stability. Its compact size and lightweight design also make it suitable for use in tight spaces and weight-sensitive applications.
Top product features:
- Has a fully threaded metric coarse thread with a right-hand thread direction and a thread pitch of 1.75 mm.
- Has a steel construction with a black oxide finish.
- Has an internally threaded eye with an outside diameter of 25 mm and an inside diameter of 12 mm.
Top product applications:
- Machine Tooling
- Robotics and Automation
- Aerospace Engineering
Fixed Rod End, Eye Inside Diameter 12 mm, Eye Outside Diameter 25 mm, Eye Thickness 14 mm, Black Oxide, Steel, Material Grade/Class 12L14, Material Quality Standards ASTM A576, REACH Compliant Yes, Hole Center-to-End Length 80 mm, RoHS Compliant Yes, Shank Diameter 12 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 57 mm, Thread Pitch 1.75 mm, Thread Size M12-1.75, Shank Length 67 1/2 mm, Externally Threaded, Shoulder Style Without Shoulder
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 1.20
- Package Height: 0.40
- Package Weight: 0.19
Product info last updated on March 10, 2026 3:26pm UTC
Category: Screws and Bolts
