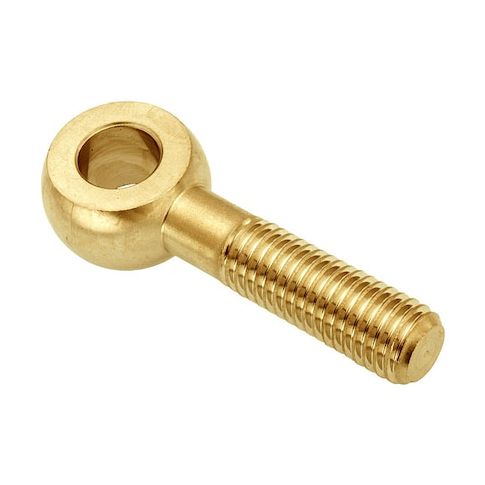

Fixed Rod End, Brass, Plain, M20-2.50 Thrd Sz, 38 mm Thrd Lg MPN:ZEBM20X70-BR
Fixed Rod End, Brass, Plain, M20-2.50 Thrd Sz, 38 mm Thrd Lg
This high-quality fixed rod end is designed for precise applications where reliability and durability are essential. With a robust brass construction and fully threaded M20-2.50 metric coarse thread, it provides a secure and stable connection point. Suitable for a range of industries including aerospace, automotive, and manufacturing, it can be used as a pivot point, bearing support, or load transfer point. Its compact size and light weight make it ideal for applications where space is limited. REACH and RoHS compliant, it meets the highest standards of safety and sustainability, ensuring a long-lasting and trouble-free performance.
Top product features:
- It has a fully threaded metric coarse thread with a right-hand thread direction.
- The rod end has a brass construction for durability and corrosion resistance.
- The fixed rod end has an internally threaded eye with a 18 mm inside diameter and a 40 mm outside diameter.
Top product applications:
- Mechanical linkages
- Machine tool construction
- Robotics and automation systems
Fixed Rod End, Eye Inside Diameter 18 mm, Eye Outside Diameter 40 mm, Eye Thickness 22 mm, Plain, Brass, REACH Compliant Yes, Hole Center-to-End Length 70 mm, RoHS Compliant Yes, Shank Diameter 20 mm, Thread Style Fully Threaded, Metric Coarse, Thread Direction Right Hand, Thread Length 38 mm, Thread Pitch 2.5 mm, Thread Size M20-2.50, Shank Length 50 mm, Externally Threaded, Shoulder Style Without Shoulder, System of Measurement Metric, Fixed Rod End, Overall Length 90 mm, Screw Size 20 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 1.80
- Package Height: 0.90
- Package Weight: 0.62
Product info last updated on January 22, 2026 6:13am UTC
Category: Screws and Bolts
