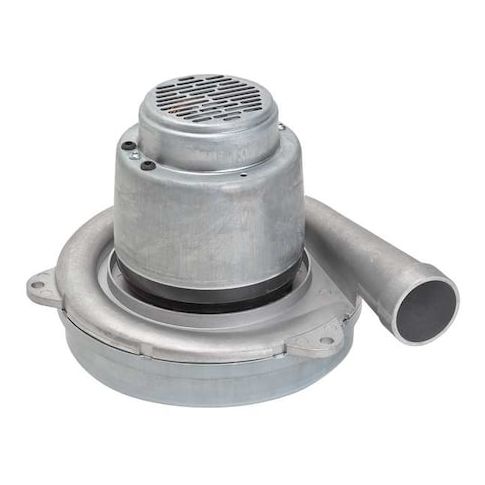

Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd MPN:122175-00
Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd
This versatile vacuum motor/blower from Ametek Lamb is designed for a wide range of applications, including laboratory and industrial settings. Its universal AC/DC motor design and single-phase operation make it easy to integrate into various systems. With a maximum air flow of 142 CFM and a vacuum rating of 150 CFM, it's ideal for applications that require high suction power. The motor's intermittent duty cycle and open enclosure design make it suitable for use in environments with varying temperatures and humidity levels. Its compact size and lightweight design also make it easy to mount and maneuver.
Top product features:
- Tangential motor design provides efficient airflow
- Single-phase motor design allows for universal AC/DC compatibility
- Thru-flow motor/blower type enables high air flow rates
Top product applications:
- Air Compressor System
- Vacuum Sealing Equipment
- Medical Research Facility
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, No. of Speeds 1, 120V AC Voltage, Full Load Amps 13.8 A, Motor/Blower Type Thru-Flow, Max. Amps 13.8 A, 60 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 700 W, Vacuum Rating 150, CFM @ 2-In. Orifice 142 cfm, Mounting Bracket Material Aluminum, Motor Bearings Ball
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.10
- Package Width: 12.40
- Package Height: 12.50
- Package Weight: 11.00
Product info last updated on February 12, 2026 10:37am UTC
Category: Motors
