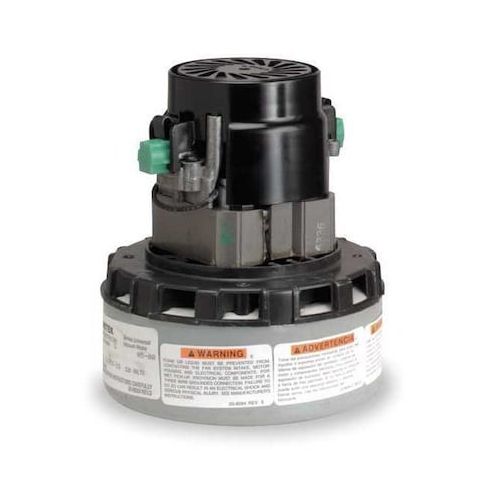

Vacuum Motor/Blower, Peripheral, 2 Stage, 1 Speed, Acustek MPN:116296-13
Vacuum Motor/Blower, Peripheral, 2 Stage, 1 Speed, Acustek
This high-performance Vacuum Motor/Blower from Ametek Lamb is designed for demanding applications, offering 24,850 RPM and 110.5 CFM @ 2-In. Orifice. Ideal for use in industrial settings, it provides efficient airflow and reliable performance. With a universal AC/DC motor design and single-phase operation, it can be easily integrated into various systems. The motor's open enclosure and all-angle mounting capabilities make it versatile for different installation configurations. Suitable for intermittent duty cycles, this motor is perfect for applications such as vacuum conveyors, pneumatic systems, and industrial cleaning equipment, where high airflow and reliability are crucial.
Top product features:
- Two-stage motor design for increased performance and efficiency
- Universal AC/DC motor design for flexibility and adaptability
- Bypass motor/blower type for improved airflow and suction capabilities
Top product applications:
- Vacuum lifting device for heavy machinery
- Industrial vacuum cleaner for large areas
- Laboratory vacuum pump for chemical extraction
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 24,850 RPM, No. of Speeds 1, 240V AC Voltage, Full Load Amps 4.6 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 3 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 349 W, Vacuum Rating 94.2, CFM @ 2-In. Orifice 110.5 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 8.20
- Package Height: 8.40
- Package Weight: 5.60
Product info last updated on February 2, 2026 6:44am UTC
Category: Motors
