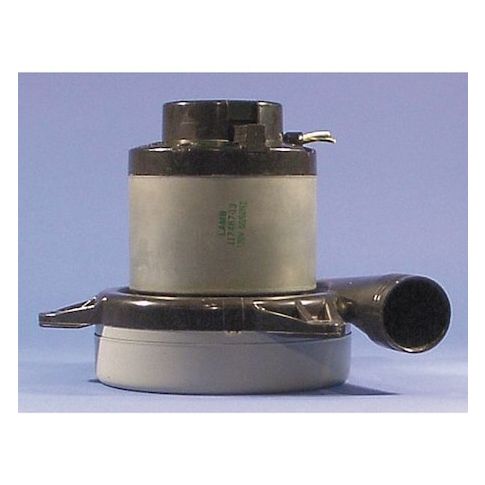

Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd MPN:117488-13
Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd
This vacuum motor/blower from Ametek Lamb is a reliable and efficient solution for various applications. With a single-phase design and universal AC/DC compatibility, it can be used in a range of settings. Its high-speed operation at 23,613 RPM provides excellent airflow, making it suitable for applications such as woodworking, metalworking, and industrial cleaning. The motor features a bypass design and is rated for intermittent duty cycles, ensuring reliable performance. Its compact design and all-angle mounting make it easy to integrate into existing systems, providing a convenient and effective solution for a variety of vacuum-related tasks.
Top product features:
- Tangential design for efficient airflow
- Universal AC/DC motor design for versatility
- Motor thermal protection is not provided
Top product applications:
- Industrial vacuum systems for manufacturing and assembly lines
- Automotive repair shops for dust collection and debris removal
- Medical facilities for laboratory and operating room air quality control
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,613 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 11.7 A, Motor/Blower Type Bypass, Max. Amps 11.8 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 396 W, Vacuum Rating 112.8, CFM @ 2-In. Orifice 107 cfm, Mounting Bracket Material Thermoset
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.10
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 10.40
Product info last updated on April 4, 2026 6:49am UTC
Category: Motors
