Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustek MPN:116207-00
Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustek

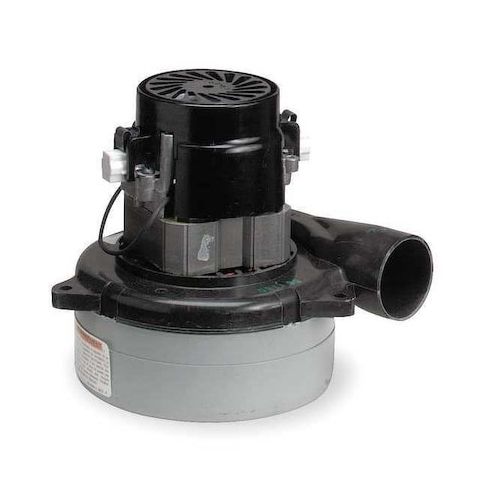

The Acustek 2-stage tangential vacuum motor/blower from Ametek Lamb is a high-performance solution for various applications. With a single-phase design and universal AC/DC compatibility, this motor can be used in a wide range of settings. Its high RPM of 23,713 and 300 W air handling capacity make it suitable for demanding tasks. The motor's open drip-proof design and all-angle mounting capabilities ensure easy installation and flexibility. Ideal for use in laboratories, medical facilities, and industrial settings, this motor/blower provides reliable and efficient vacuum performance. Its compact size and lightweight design also make it a great choice for space-constrained environments.
Top product features:
- Tangential blower design for efficient air movement
- Two-stage motor for increased suction power
- Universal AC/DC motor design for flexibility in operation
Top product applications:
- Vacuum systems for industrial woodworking applications
- Dust collection systems for power tools and machinery
- Vacuum-powered air purification systems for commercial and industrial use
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,713 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 9.0 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 9.1 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 300 W, Vacuum Rating 91.3, CFM @ 2-In. Orifice 104 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 10.70
- Package Height: 7.90
- Package Weight: 5.30
Product info last updated on January 14, 2026 1:29pm UTC
Category: Motors
