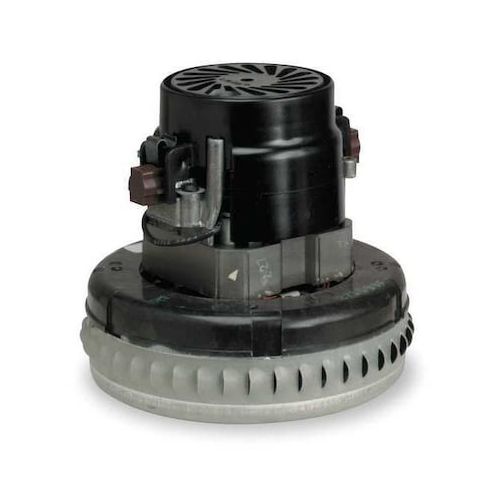

Vacuum Motor/Blower, Peripheral, 1 Stage, 1 Speed, Acustek MPN:116325-00
Vacuum Motor/Blower, Peripheral, 1 Stage, 1 Speed, Acustek
The Acustek 1 Stage Peripheral Vacuum Motor/Blower from Ametek Lamb is a high-performance solution for various applications. With a single-phase design and universal AC/DC compatibility, this motor can be used in a range of environments. Its 23,292 RPM nameplate speed and 95 CFM airflow make it ideal for industrial and commercial settings, such as manufacturing facilities, laboratories, and healthcare facilities. The motor's compact design and open enclosure allow for easy installation and maintenance, while its intermittent duty cycle ensures reliable operation in high-traffic areas. Suitable for use in temperatures up to 40°C, this motor is a reliable choice for demanding applications.
Top product features:
- Single-phase operation allows for easy installation and reduced wiring complexity.
- Universal AC/DC motor design provides flexibility and adaptability in various applications.
- Bypass motor/blower type design enables efficient air flow and vacuum performance.
Top product applications:
- Dental laboratory vacuum systems
- Automotive paint and body shop vacuum systems
- Industrial vacuum systems for metal fabrication and machining
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,292 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 5.7 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 4 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 188 W, Vacuum Rating 50.1, CFM @ 2-In. Orifice 95 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 8.00
- Package Height: 7.20
- Package Weight: 2.80
Product info last updated on January 14, 2026 11:02pm UTC
Category: Motors
