Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd MPN:116671-50
Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd

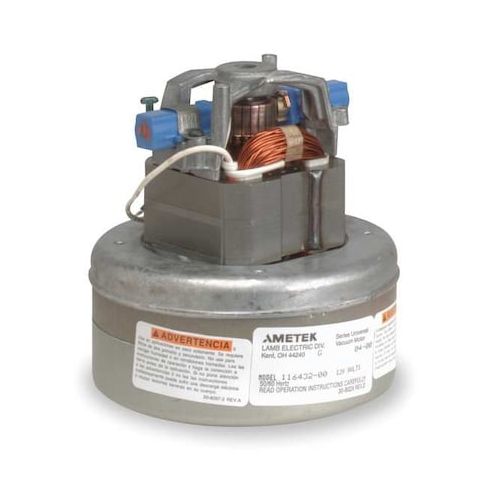

The Ametek Lamb Vacuum Mtr/Blwr is a high-performance, single-phase motor designed for universal AC/DC use. With a nameplate RPM of 25,800, this motor delivers efficient airflow in a variety of applications. Ideal for use in industrial settings, it can be mounted in any position and operates at a maximum ambient temperature of 40°C. Its through-flow design and auto thermal protection ensure reliable performance. This motor is suitable for applications such as material handling, manufacturing, and laboratory settings, where a high volume of air needs to be moved efficiently. Its compact size and ease of installation make it a convenient solution.
Top product features:
- Thru-flow design allows for efficient airflow and heat dissipation
- Single phase motor design accommodates universal AC/DC power sources
- Motor thermal protection automatically regulates temperature to prevent overheating
Top product applications:
- Vacuum cleaning systems for industrial and commercial use
- Automotive repair and maintenance equipment
- Medical equipment and laboratory settings
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 25,800 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 8.8 A, Non-Standard Frame, Motor/Blower Type Thru-Flow, Max. Amps 9 A, 60/50 Hz Hz, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 321 W, Vacuum Rating 100, CFM @ 2-In. Orifice 104 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 10.00
- Package Height: 6.60
- Package Weight: 5.55
Product info last updated on February 26, 2026 6:07am UTC
Category: Motors
