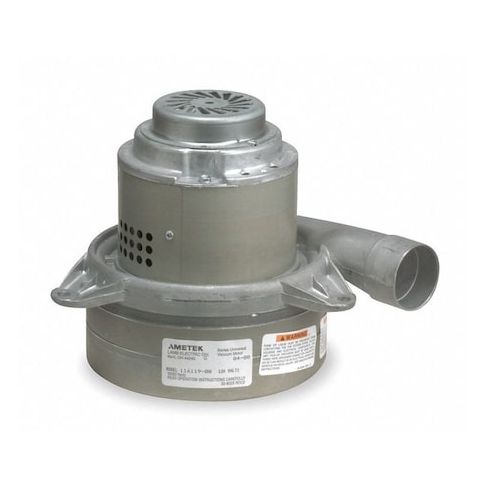

Vacuum Mtr/Blwr, Tangential, 3 Stge, 1 Spd MPN:116119-00
Vacuum Mtr/Blwr, Tangential, 3 Stge, 1 Spd
The Ametek Lamb Vacuum Mtr/Blwr, Tangential, 3 Stage, 1 Speed is a versatile and reliable solution for various industrial applications. This single-phase motor is designed for universal AC/DC use, providing consistent performance in a range of environments. With a maximum speed of 22,150 RPM, it efficiently moves air and can be used in applications such as dust collection, vacuum systems, and material handling. Its compact design and open drip-proof enclosure make it easy to install and maintain. Ideal for intermittent use, this motor offers a durable and cost-effective solution for businesses looking to optimize their operations.
Top product features:
- Tangential design for efficient airflow
- Single-phase motor for compatibility with a wide range of power sources
- Universal AC/DC motor design for flexibility in use
Top product applications:
- Dust Collection Systems
- Fume Extraction Systems
- Woodworking Machinery
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 22,150 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 12.6 A, Motor/Blower Type Bypass, Max. Amps 12.6 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 438 W, Vacuum Rating 135, CFM @ 2-In. Orifice 94.3 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.10
- Package Width: 10.10
- Package Height: 10.60
- Package Weight: 10.25
