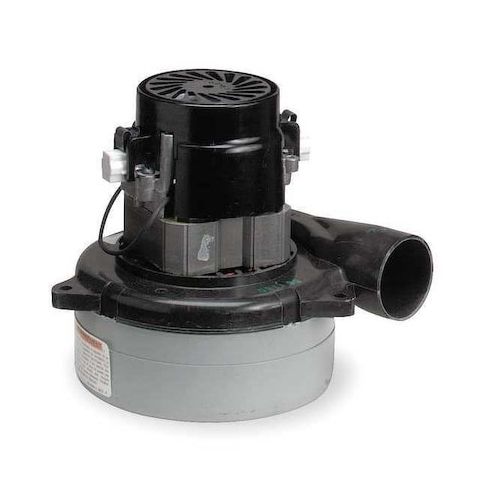

Vacuum Motor/Blower, Tangential, 3 Stage, 1 Speed, Acustek MPN:116859-00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2631544
Vacuum Motor/Blower, Tangential, 3 Stage, 1 Speed, Acustek
The Acustek 3-stage tangential vacuum motor/blower from Ametek Lamb is a versatile and reliable solution for various applications. Ideal for use in industrial settings, laboratories, and DIY projects, this motor/blower provides a constant flow of air at 94 CFM with a maximum air wattage of 348 W. Its universal AC/DC design and 1-speed operation make it easy to integrate into existing systems. With a durable construction and high-temperature resistance, this motor/blower is perfect for intermittent duty cycles in environments up to 40°C. Suitable for a wide range of applications, including woodworking, vacuum cleaning, and pneumatic systems.
Top product features:
- Tangential design for improved airflow and efficiency
- Three-stage motor for increased suction power
- Universal AC/DC motor design for flexibility in use
Top product applications:
- Dust collection systems for woodworking shops
- Industrial vacuum cleaners for factories and warehouses
- Laboratory vacuum systems for scientific research and testing
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,930 RPM, No. of Speeds 1, 240V AC Voltage, Full Load Amps 5.3 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 5.4 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 348 W, Vacuum Rating 116.7, CFM @ 2-In. Orifice 94 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.60
- Package Width: 7.70
- Package Height: 7.50
- Package Weight: 6.50
