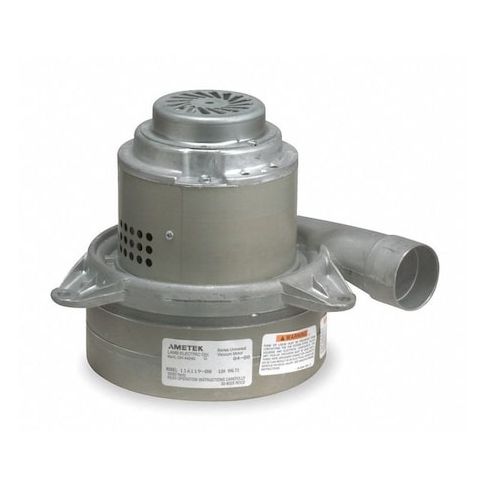

Vacuum Mtr/Blwr, Tangential, 3 Stge, 1 Spd MPN:116161-00
Vacuum Mtr/Blwr, Tangential, 3 Stge, 1 Spd
The Ametek Lamb Vacuum Mtr/Blwr is a high-performance, universal AC/DC motor designed for a variety of applications. Suitable for intermittent use in environments up to 40°C, this motor features a bypass design and a single-phase, 120V AC voltage rating. With a maximum air flow of 92.1 CFM at 2-inch orifice and a vacuum rating of 134 CFM, it is ideal for use in vacuum systems, exhaust systems, and other industrial applications where high airflow is required. Its compact design and durable construction make it a reliable choice for use in a range of industries and settings.
Top product features:
- Tangential design for efficient vacuum generation
- Universal AC/DC motor design for versatility and adaptability
- Motor thermal protection is not provided
Top product applications:
- Vacuum conveyor systems for food processing
- Industrial vacuum cleaning equipment for manufacturing facilities
- Laboratory vacuum systems for chemical analysis and testing
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 24,430 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 13.7 A, Motor/Blower Type Bypass, Max. Amps 13.7 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 403 W, Vacuum Rating 134, CFM @ 2-In. Orifice 92.1 cfm, Mounting Bracket Material Aluminum
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 9.00
- Package Weight: 10.40
Product info last updated on February 17, 2026 11:30pm UTC
Category: Motors
