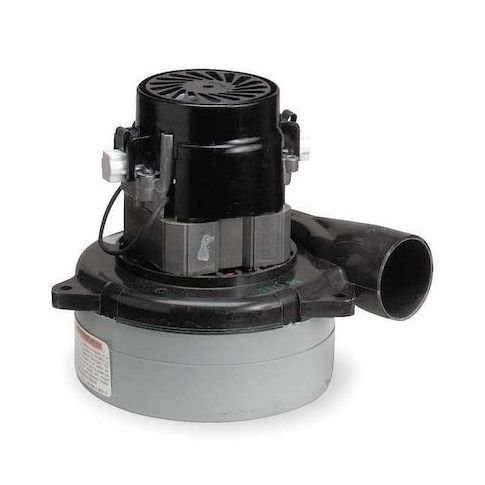

Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustek MPN:116210-85
Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustek
The Acustek 2-stage tangential vacuum motor/blower from Ametek Lamb is a reliable and efficient solution for a variety of applications. Ideal for use in industrial and commercial settings, this motor/blower provides a maximum air flow of 102.6 cfm at 2-inch orifice and a vacuum rating of 89.8. Its universal AC/DC motor design and single-phase operation make it a versatile choice for a range of applications, including woodworking, metalworking, and other industrial processes. With its high-speed operation and durable construction, this motor/blower is designed to provide long-lasting performance and reliability in demanding environments.
Top product features:
- Two-stage design for improved airflow and efficiency
- Tangential blower design for effective vacuum creation
- Universal AC/DC motor design for flexibility in power supply options
Top product applications:
- Dust collection systems for woodworking shops
- Industrial vacuum cleaning systems for large facilities
- Dust extraction systems for metalworking and machining operations
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,134 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 8.0 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 8.2 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 288 W, Vacuum Rating 89.8, CFM @ 2-In. Orifice 102.6 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 8.00
- Package Height: 10.80
- Package Weight: 5.30
Product info last updated on February 26, 2026 4:37am UTC
Category: Motors
