Vacuum Motor/Blower, Tangential, 3 Stage, 1 Speed, Acustek MPN:116565-29
Vacuum Motor/Blower, Tangential, 3 Stage, 1 Speed, Acustek

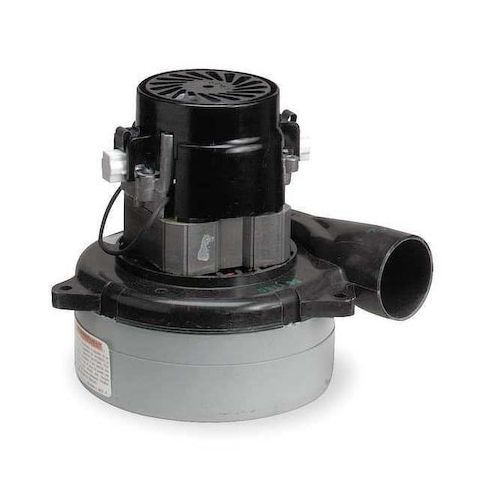

The Ametek Lamb Acustek Tangential 3-Stage Vacuum Motor/Blower is a powerful and versatile solution for a variety of applications. With a high-speed motor capable of 22,200 RPM, this vacuum motor/blower is ideal for use in industrial settings, laboratories, and manufacturing facilities. Its universal AC/DC design and non-standard frame make it a flexible solution for unique applications. The motor/blower's high air flow rate of 99 CFM and vacuum rating of 117.4 make it suitable for applications such as vacuum tables, vacuum pumps, and laboratory equipment. Its compact design and easy mounting make it a convenient choice for a range of industries.
Top product features:
- Single phase operation allows for installation in a variety of applications
- Universal AC/DC motor design provides flexibility in power source compatibility
- Tangential blower design allows for high airflow rates in a compact package
Top product applications:
- Industrial woodworking and furniture making
- Automotive refinishing and paint stripping
- Laboratory and research equipment
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 22,200 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 10.4 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 10.7 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 368 W, Vacuum Rating 117.4, CFM @ 2-In. Orifice 99 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 10.50
- Package Height: 8.00
- Package Weight: 6.70
Product info last updated on February 11, 2026 10:18am UTC
Category: Motors
