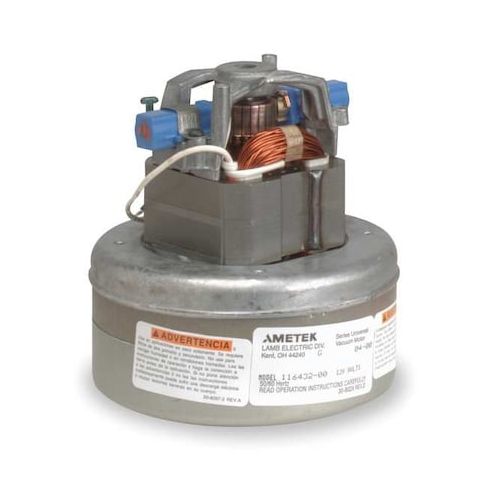

Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd MPN:116457-00
Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd
This high-performance vacuum motor and blower is designed for demanding applications, offering reliable and efficient operation. With a universal AC/DC motor design and a maximum speed of 23,170 RPM, it provides exceptional airflow and pressure capabilities. Suitable for use in a range of industries, including manufacturing, healthcare, and laboratory settings, this product excels in applications requiring high vacuum levels, such as vacuum packaging, sample preparation, and pneumatic conveying. Its compact design and open drip-proof enclosure make it easy to integrate into existing systems, while its high-temperature rating ensures reliable operation in demanding environments.
Top product features:
- Thru-Flow Motor/Blower design
- Single Phase operation
- Auto Motor Thermal Protection
Top product applications:
- Vacuum cleaning systems for industrial and commercial use
- Automotive exhaust system cleaning and drying equipment
- Medical and laboratory equipment ventilation and air handling systems
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,170 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 7.5 A, Non-Standard Frame, Motor/Blower Type Thru-Flow, Max. Amps 7.7 A, 60/50 Hz Hz, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 241 W, Vacuum Rating 90.2, CFM @ 2-In. Orifice 94 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.60
- Package Height: 7.00
- Package Weight: 4.70
Product info last updated on January 16, 2026 5:35am UTC
Category: Motors
