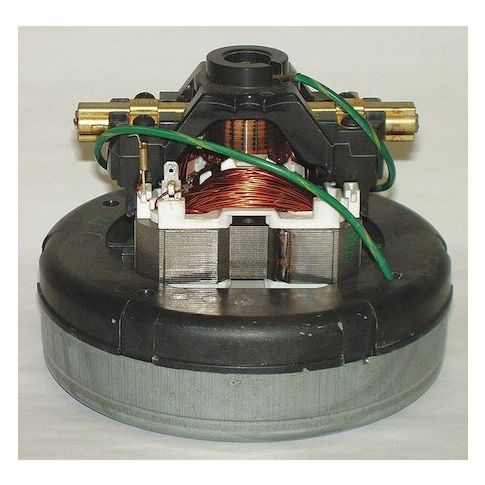

Vacuum Mtr/Blwr, Thru-Flow, 1 Stge, 1 Spd MPN:119411-00
Vacuum Mtr/Blwr, Thru-Flow, 1 Stge, 1 Spd
This high-performance vacuum motor/blower from Ametek Lamb is designed for demanding applications that require efficient and reliable suction power. With its universal AC/DC motor design and 26,870 RPM nameplate speed, it delivers a maximum air flow of 112 CFM at 2-in. orifice and a vacuum rating of 63 CFM. Ideal for use in laboratories, medical facilities, and industrial settings, this motor/blower offers a compact and cost-effective solution for a variety of applications, including vacuum systems, pneumatic conveying, and material handling. Its durable construction and automatic thermal protection ensure long-lasting performance in demanding environments.
Top product features:
- Thru-flow motor/blower design for efficient airflow
- Single-phase motor design for universal AC/DC compatibility
- Auto motor thermal protection for safe operation
Top product applications:
- Fume extraction systems
- Vacuum conveyor systems
- Industrial dust collection systems
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 26,870 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 6.6 A, Non-Standard Frame, Motor/Blower Type Thru-Flow, Max. Amps 6.8 A, 60/50 Hz Hz, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 190 W, Vacuum Rating 63, CFM @ 2-In. Orifice 112 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.90
- Package Height: 8.80
- Package Weight: 3.75
