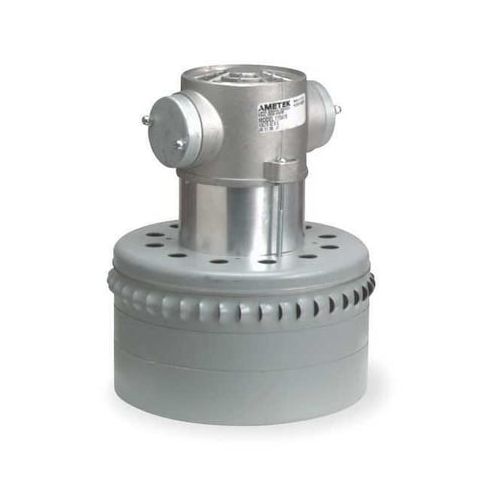

Vacuum Mtr/Blwr, Peripheral, 3 Stge, 1 Spd MPN:114789
Vacuum Mtr/Blwr, Peripheral, 3 Stge, 1 Spd
This vacuum motor and blower is a reliable and efficient solution for a variety of applications. With a single phase, universal AC/DC design, it can handle intermittent duty cycles and operate in temperatures up to 40°C. The motor is designed for use with a bypass blower, making it ideal for applications such as vacuum systems, dust collection, and material handling. Its high CFM rating of 122 cfm at 2-in. orifice ensures effective airflow, while its compact size and aluminum mounting bracket make it easy to integrate into new or existing systems.
Top product features:
- Single phase operation allows for reduced installation complexity and lower power requirements
- Motor design supports universal AC/DC operation, enabling flexibility in power source usage
- RPM of 14,300 provides high airflow rates, suitable for demanding vacuum applications
Top product applications:
- Laboratory equipment
- Medical equipment
- Manufacturing machinery
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 14,300 RPM, No. of Speeds 1, 240V AC Voltage, Full Load Amps 5.0 A, Motor/Blower Type Bypass, Max. Amps 3.2 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 354 W, Vacuum Rating 84.5, CFM @ 2-In. Orifice 122 cfm, Mounting Bracket Material Aluminum
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 10.20
- Package Height: 10.30
- Package Weight: 12.80
