Vacuum Mtr/Blwr, Peripheral, 2 Stge, 1 Spd MPN:116025-13
Vacuum Mtr/Blwr, Peripheral, 2 Stge, 1 Spd

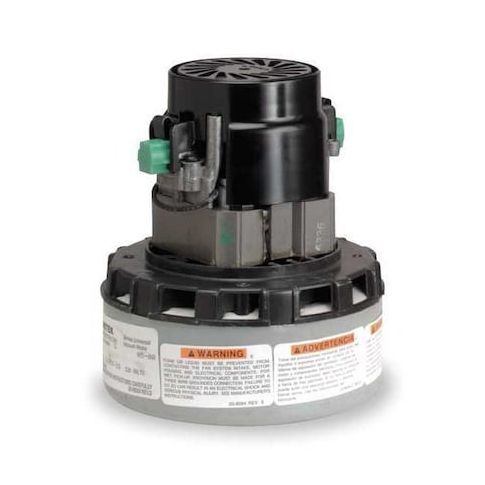

The Ametek Lamb Vacuum Motor/Blower is a versatile and efficient solution for a variety of applications. With a single-phase design and universal AC/DC compatibility, this motor can be used in a range of settings, from industrial to laboratory environments. Its high-speed operation of 23,436 RPM and 1-speed configuration make it ideal for applications requiring high airflow, such as vacuum systems, pneumatic conveying, and dust collection. The motor's compact design and open enclosure allow for easy integration and maintenance, making it a reliable choice for intermittent duty cycles in demanding environments.
Top product features:
- Operates at 23,436 RPM
- Has a single speed setting
- Produces 103 cfm of airflow at 2-inch orifice
Top product applications:
- Industrial vacuum systems
- Automotive repair facilities
- Laboratories and research institutions
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,436 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 8.9 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 5.6 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 293 W, Vacuum Rating 91.5, CFM @ 2-In. Orifice 103 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.90
- Package Width: 6.50
- Package Height: 7.10
- Package Weight: 1209.60
