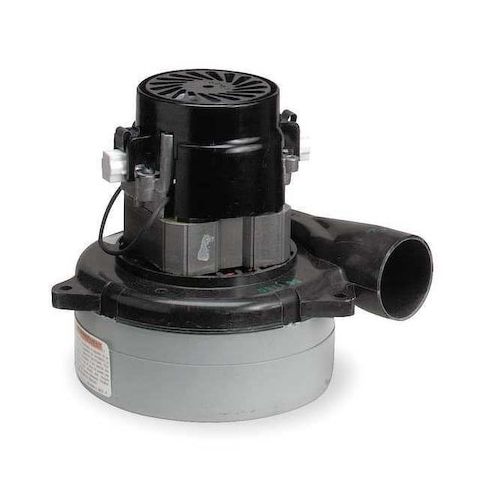

Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustek MPN:116210-50
Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustek
This high-performance vacuum motor/blower from Ametek Lamb is designed for demanding applications where reliability and efficiency are crucial. With a single-phase motor and universal AC/DC design, it can handle a variety of tasks, from general vacuuming to specialized industrial uses. Its tangential, two-stage design provides a powerful airflow of 102.6 cfm, while its compact size and lightweight design make it easy to install and maneuver. Ideal for use in laboratories, manufacturing facilities, and other environments where a reliable vacuum source is essential, this motor/blower offers a cost-effective solution for a wide range of applications.
Top product features:
- Tangential design for efficient airflow
- 2-stage motor for increased suction power
- Single-phase operation for easy integration
Top product applications:
- Automotive paint booths
- Dry cleaning equipment
- Industrial vacuum systems
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,134 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 8.0 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 8.2 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 288 W, Vacuum Rating 89.8, CFM @ 2-In. Orifice 102.6 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.90
- Package Width: 8.00
- Package Height: 8.60
- Package Weight: 5.60
Product info last updated on April 1, 2026 8:48am UTC
Category: Motors
