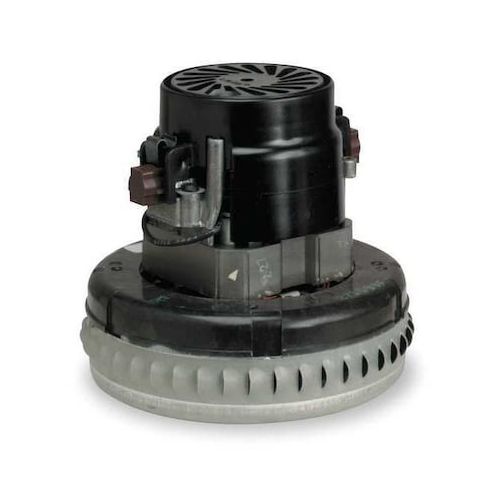

Vacuum Motor/Blower, Peripheral, 1 Stage, 1 Speed, Acustek MPN:116196-00
Vacuum Motor/Blower, Peripheral, 1 Stage, 1 Speed, Acustek
The Acustek 1 Stage Peripheral Vacuum Motor/Blower from Ametek Lamb is a versatile and reliable solution for a variety of applications. Ideal for use in industrial settings, this motor provides a high airflow of 133 CFM at 2-inch orifice and a vacuum rating of 49.5. Its universal AC/DC design and single phase operation make it easy to integrate into existing systems. With a durable design and ability to operate in temperatures up to 40°C, this motor is perfect for applications such as dust collection, pneumatic conveying, and material handling. Its compact size and lightweight design also make it easy to install and maintain.
Top product features:
- One stage design provides a simple and efficient operation.
- Single phase operation allows for easy installation and use.
- Universal AC/DC motor design enables flexibility and compatibility with various power sources.
Top product applications:
- Dental or Medical Vacuum Systems
- Laboratory Vacuum Systems
- Industrial Vacuum Systems for various applications such as woodworking, metalworking, and manufacturing.
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,125 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 7.0 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 4.9 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 291 W, Vacuum Rating 49.5, CFM @ 2-In. Orifice 133 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 8.80
- Package Height: 8.70
- Package Weight: 4.10
Product info last updated on February 2, 2026 2:32pm UTC
Category: Motors
