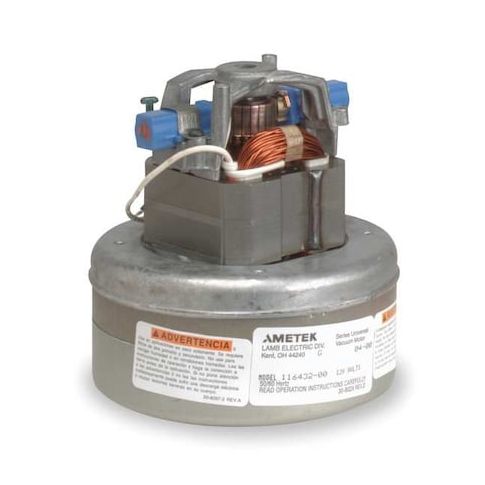

Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd MPN:115737
Vacuum Mtr/Blwr, Thru-Flow, 2 Stge, 1 Spd
The Ametek Lamb Vacuum Mtr/Blwr is a high-performance, single-phase motor designed for use in a variety of applications requiring intermittent duty cycles. With a universal AC/DC motor design and 23,500 RPM nameplate speed, this motor provides efficient airflow and reliable operation. Suitable for use in environments with temperatures up to 40°C, it is ideal for applications such as laboratory equipment, medical devices, and industrial processes. The motor's open drip-proof enclosure and all-angle mounting design make it easy to integrate into a wide range of systems, providing a reliable and efficient solution for applications requiring vacuum flow rates up to 99 CFM.
Top product features:
- Thru-Flow design allows for efficient airflow and vacuum creation
- Universal AC/DC motor design provides flexibility for use in various applications
- Open Drip Proof motor enclosure design protects against dust and debris while maintaining airflow
Top product applications:
- Vacuum pumps for laboratory equipment
- Industrial vacuum systems for manufacturing
- Medical equipment for diagnostic imaging
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,500 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 7.8 A, Non-Standard Frame, Motor/Blower Type Thru-Flow, Max. Amps 8 A, 60 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 260 W, Vacuum Rating 92, CFM @ 2-In. Orifice 99 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.80
- Package Width: 6.80
- Package Height: 7.10
- Package Weight: 4.85
Product info last updated on February 8, 2026 2:33pm UTC
Category: Motors
