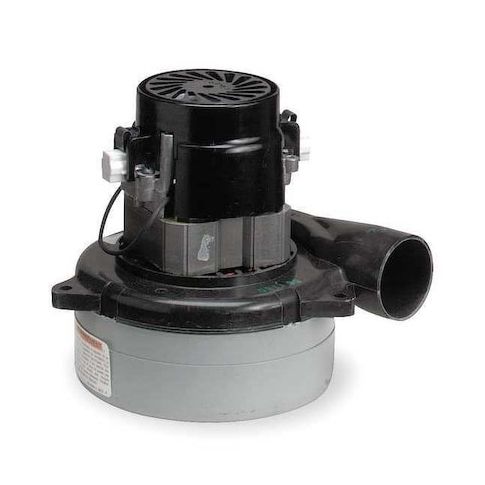

Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustek MPN:115894
Vacuum Motor/Blower, Tangential, 2 Stage, 1 Speed, Acustek
This high-performance vacuum motor/blower from Ametek Lamb is designed for demanding applications. With a 2-stage, 1-speed tangential design, it provides efficient airflow and reliable operation. Suitable for use in industrial settings, it can handle intermittent duty cycles and operates within a temperature range of 40°C. The motor's universal AC/DC design ensures versatility, while its open enclosure design makes it easy to integrate into existing systems. Ideal for applications such as vacuum conveyors, dust collection systems, and pneumatic conveying systems, this motor offers reliable performance and long-lasting durability. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Two-stage operation
- Single-phase, universal AC/DC motor design
- Tangential blower design
Top product applications:
- Industrial Vacuum Systems
- Laboratory Fume Hoods
- Automotive Repair Shops
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 23,134 RPM, No. of Speeds 1, 120V AC Voltage, Full Load Amps 8.0 A, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 8.2 A, 60/50 Hz Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 288 W, Vacuum Rating 89.8, CFM @ 2-In. Orifice 102.6 cfm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 7.80
- Package Height: 10.70
- Package Weight: 5.20
Product info last updated on March 27, 2026 5:28pm UTC
Category: Motors
