Direct, 24in, Roof, Exh, 10500CFM, 3PH, 3HP, XP MPN:AM-24-3-3-EXP
Direct, 24in, Roof, Exh, 10500CFM, 3PH, 3HP, XP

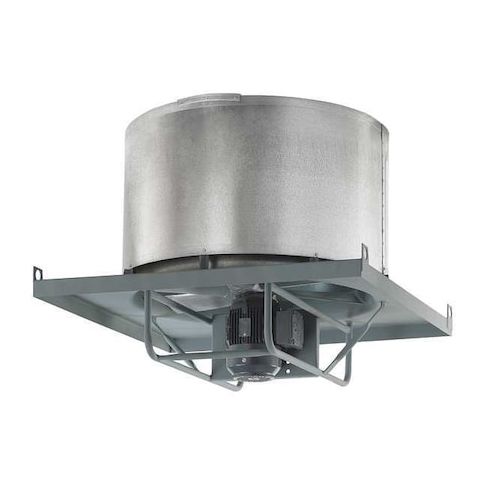

The Americraft Axial Upblast Roof Exhaust Fan is a powerful and efficient solution for ventilating high-static pressure applications. With a 10500CFM capacity and 3HP motor, this fan is perfect for industrial settings such as manufacturing facilities, warehouses, and garages. Its direct drive system and totally enclosed fan-cooled motor ensure reliable operation and long lifespan. Suitable for use with flammable vapors, this fan is ideal for applications where air quality and safety are a top priority. Its compact design and easy installation make it a convenient choice for a variety of settings, including commercial and industrial facilities.
Top product features:
- Direct Drive design for efficient power transmission
- Totally Enclosed Fan Cooled motor enclosure for reliable operation in harsh environments
- Maximum Static Pressure rating of 1/2 in wc for high-static pressure applications
Top product applications:
- Roof exhaust fan for commercial buildings
- High-static pressure ventilation for industrial applications
- Exhaust fan for flammable vapor environments
Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Direct Drive, Base Diameter Not Applicable, Base Length 39 in, Base Width 39 in, Base Shape Square, Nameplate Voltage 230/460V AC, Phase 3, Motor Horsepower 3 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 24 in, For Air Type Flammable Vapor, Maximum Static Pressure 1/2 in wc, Maximum Inlet Air Temperature 104 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 46.00
- Package Width: 46.00
- Package Height: 44.00
- Package Weight: 320.00
- Restricted States: CA
Product info last updated on March 8, 2026 8:48am UTC
Category: Roof Ventilators
