Direct, 36in, Roof, Exh, 21200CFM, 3PH, 5HP, XP MPN:AML-36-5-3-EXP
Direct, 36in, Roof, Exh, 21200CFM, 3PH, 5HP, XP

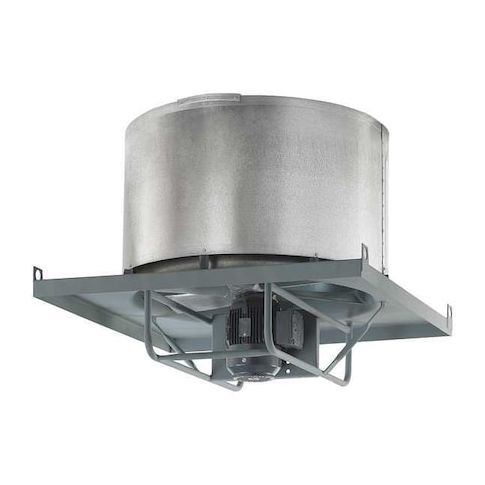

This 36-inch axial upblast roof exhaust fan from Americraft is a high-performance solution for removing flammable vapors and heat from industrial spaces. Its 5-horsepower motor and 21,200 CFM airflow capacity make it ideal for applications such as chemical plants, manufacturing facilities, and warehouses. The fan's direct drive system and totally enclosed fan-cooled motor ensure reliable operation in demanding environments. With a maximum static pressure of 1/2 inch WC, it can handle high-static pressure applications. Its compact design and square base make it easy to install, and its high-efficiency operation reduces energy costs and minimizes environmental impact.
Top product features:
- Direct drive for efficient power transmission
- Totally enclosed fan-cooled motor for reliable operation in harsh environments
- Maximum static pressure of 1/2 in wc for effective ventilation in high-static-pressure applications
Top product applications:
- High-Static Pressure Applications
- High-Efficiency Motor Applications
- Flammable Vapor Air Type
Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Direct Drive, Base Diameter Not Applicable, Base Length 51 in, Base Width 51 in, Base Shape Square, Nameplate Voltage 230/460V AC, Phase 3, Motor Horsepower 5 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 36 in, For Air Type Flammable Vapor, Maximum Static Pressure 1/2 in wc, Maximum Inlet Air Temperature 104 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 57.00
- Package Width: 57.00
- Package Height: 53.00
- Package Weight: 525.00
- Restricted States: CA
Product info last updated on February 9, 2026 10:35am UTC
Category: Roof Ventilators
