Direct, 48in, Roof, Exh, 41000CFM, 3P, 10HP, TE MPN:AML-48-10-3-TEFC
Direct, 48in, Roof, Exh, 41000CFM, 3P, 10HP, TE

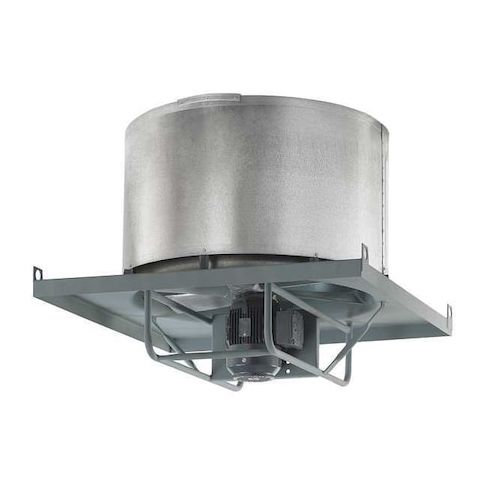

This 48-inch axial upblast roof exhaust fan from Americraft is designed for high-volume air removal in commercial and industrial settings. Its 10-horsepower motor provides a maximum airflow of 41,000 CFM, making it suitable for applications such as large warehouses, manufacturing facilities, and restaurants with high heat loads. The totally enclosed fan-cooled motor ensures durability and reliability, while the direct drive design simplifies maintenance. With its ability to handle up to 1/2 inch of static pressure, this fan is ideal for applications with high-pressure requirements, such as those in areas with dense populations or high-traffic zones.
Top product features:
- Direct Drive
- Totally Enclosed Fan Cooled Motor
- Maximum Static Pressure of 1/2 in wc
Top product applications:
- Roof ventilation in commercial buildings
- High-static pressure applications in industrial settings
- Clean air exhaust in laboratories or medical facilities
Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Direct Drive, Base Diameter Not Applicable, Base Length 63 in, Base Width 63 in, Base Shape Square, Nameplate Voltage 230/460V AC, Phase 3, Motor Horsepower 10 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 48 in, For Air Type Clean Air, Maximum Static Pressure 1/2 in wc, Maximum Inlet Air Temperature 104 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 70.00
- Package Width: 70.00
- Package Height: 62.00
- Package Weight: 900.00
- Restricted States: CA
Product info last updated on February 21, 2026 3:50pm UTC
Category: Roof Ventilators
