Belt, 36in, Roof, Exh, 13660CFM, 3PH, 1.5HP, TE MPN:BRV-836-1 1/2-3-TEFC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2208486
Belt, 36in, Roof, Exh, 13660CFM, 3PH, 1.5HP, TE

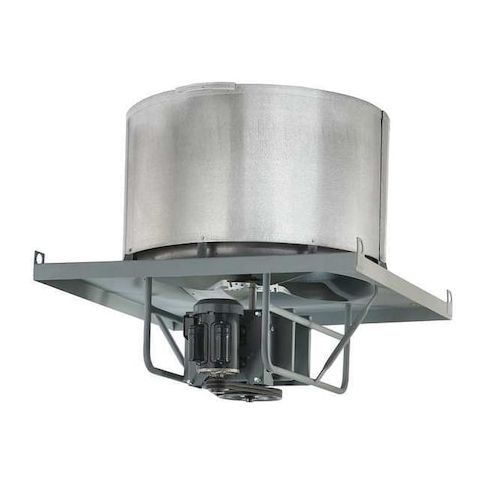

The Americraft Axial Upblast Roof Exhaust Fan is a high-performance solution for commercial and industrial applications. This 36-inch fan is designed to efficiently remove hot air from rooftops, improving indoor air quality and reducing energy costs. With a maximum airflow capacity of 13660 CFM and a 1.5 HP motor, this fan is ideal for use in warehouses, factories, and other high-temperature environments. Its totally enclosed fan-cooled motor and clean air design make it a reliable and low-maintenance choice for applications with high-static pressure requirements. Perfect for use in states outside of California, this fan ships in 30 days.
Top product features:
- Belt drive provides a reliable and quiet operation
- Totally Enclosed Fan Cooled motor enclosure protects against dust and moisture
- 1.5HP motor produces high airflow, moving up to 13660CFM of air
Top product applications:
- Roof ventilation for commercial buildings
- High-static pressure applications such as hospitals and laboratories
- Clean air applications in areas with high heat such as industrial kitchens
Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Belt Drive, Base Diameter Not Applicable, Base Length 51 in, Base Width 51 in, Base Shape Square, Nameplate Voltage 230/460V AC, Phase 3, Motor Horsepower 1 1/2 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 36 in, For Air Type Clean Air, Maximum Static Pressure 1/2 in wc, Maximum Inlet Air Temperature 104 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 57.00
- Package Width: 57.00
- Package Height: 54.00
- Package Weight: 395.00
- Restricted States: CA
Product info last updated on March 30, 2026 4:41am UTC
Category: Roof Ventilators
